Specs
| Model | TP80NY-A | TP80NY-AW | TP80NY-AWG | |
| Printing | Printing method | Direct thermal | ||
| Resolution | 203 dpi/inch (8 dots/mm) | |||
| Print width | 3 inches (72 mm maximum) | |||
| Print speed | Up to 200 mm/s | |||
| Programming language | ESC/POS | |||
| Media | Media type | Thermal receipt paper (no black mark) | ||
| Media width | 80mm(Optional 58mm paper roll baffle) | |||
| Output Direction | Front output | |||
| Communication Interfaces | USB Type-B | Supported | ||
| Ethernet | Supported | |||
| Wi-Fi (2.4GHz/5GHz) | Not supported | Supported | Supported | |
| Bluetooth LE | Optional | Supported | Supported | |
| 4G LTE Cat-1 | Not supported | Not supported | 4G Full Network Access（nano-SIM） | |
| Sensors | Standard | Paper Shortage Detection, TPH Over Temperature Detection | ||
| Cutting Method | Automatic cutter | Supported | ||
| Indicators Operation | Indicator light | 1 power indicator light, 1 network indicator | ||
| Audio/alerts | Speaker | |||
| Button | 1 power button, 1 function button, 2 volume adjustment buttons | |||
| Electrical Specifications | Input | 100~240 V，50/60 Hz | ||
| Output | 24 V/1.5 A | |||
| Reliability | Thermal print head | 100 km | ||
| Electrostatic | 4 kV / 8 kV | |||
| Environmental | Operating | Operating temperature: 0~45 degrees Celsius, relative humidity: 10~90%, no condensation | ||
| Specifications | Storage | Storage: -20~60 degrees Celsius, relative humidity 10~90%, no condensation | ||
| Certifications | Mainland China | CCC, SRRC | ||
Features

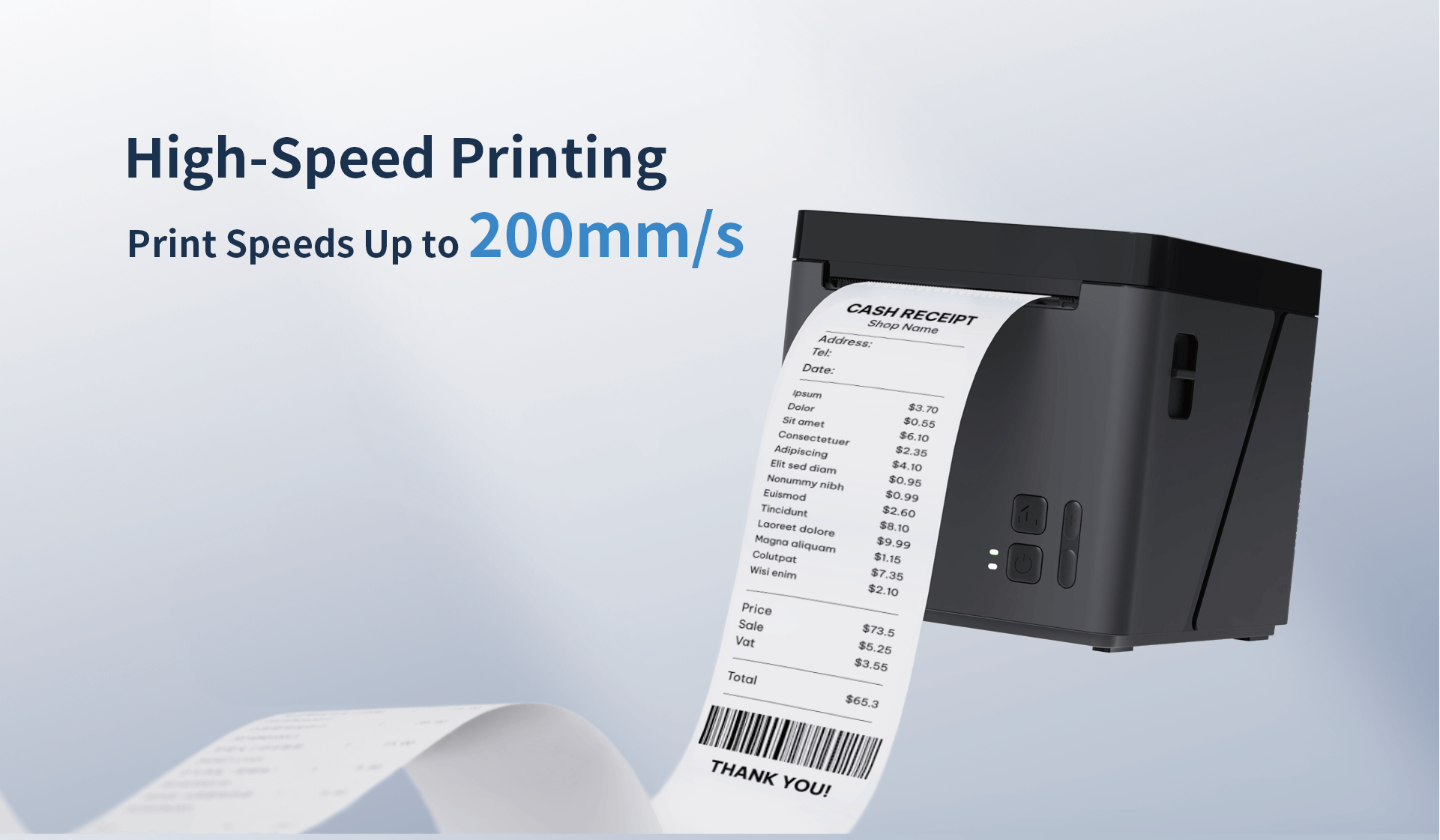

● 200 mm/s printing speed

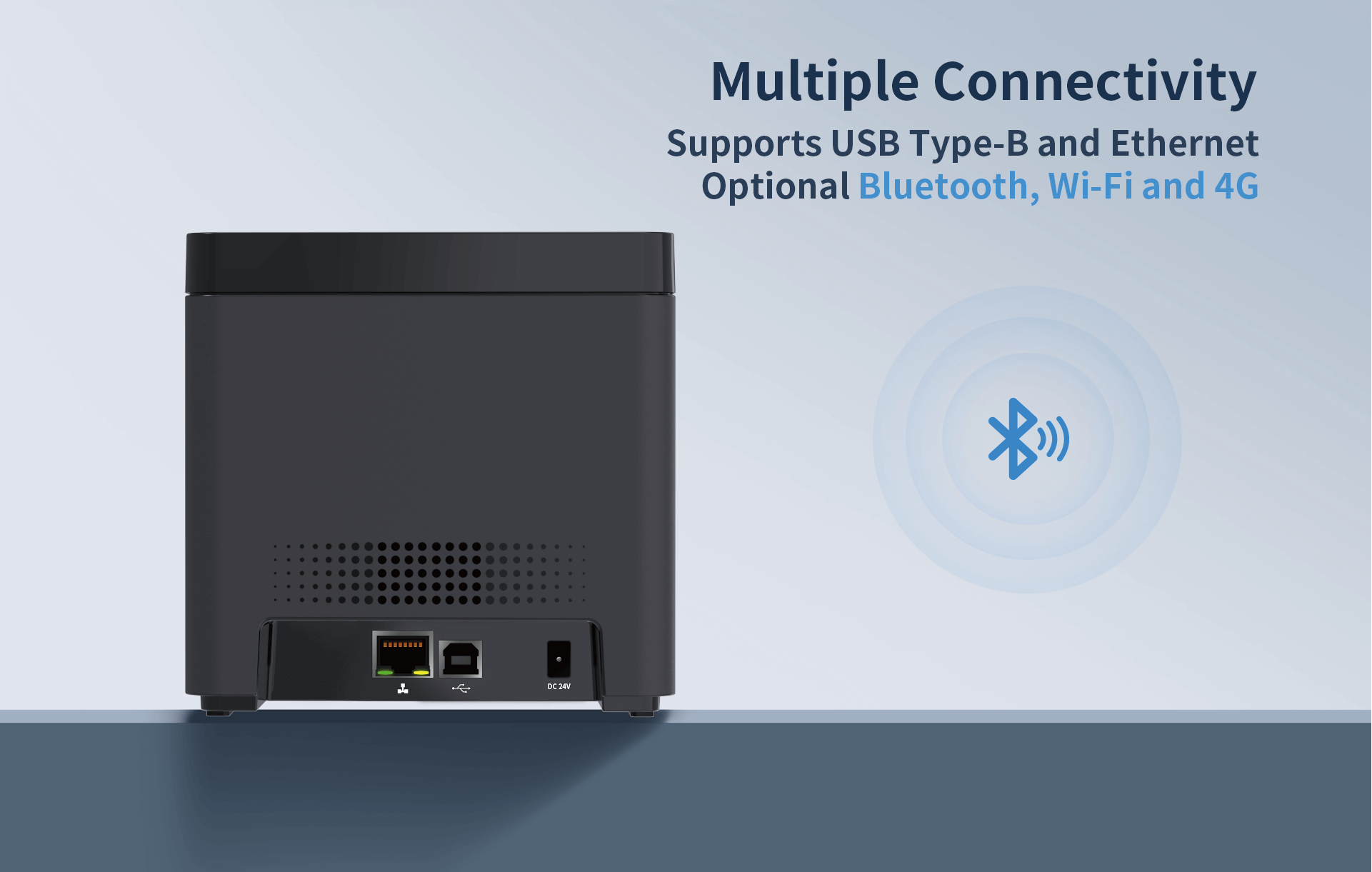

● Support USB Type-B, Ethernet connection
● Equipped with speakers, supports
● real-person voice broadcast

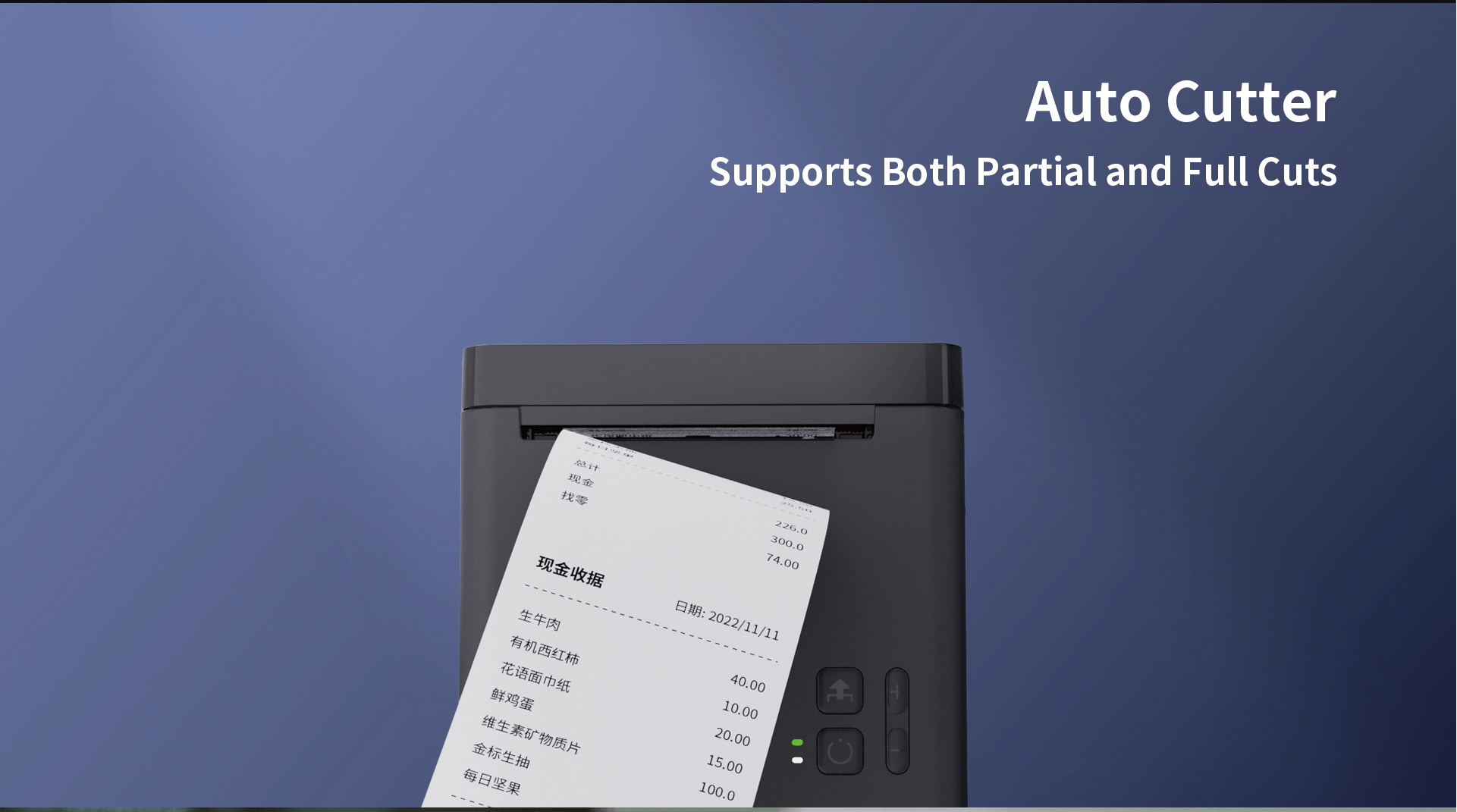

● Equipped with automatic cutter

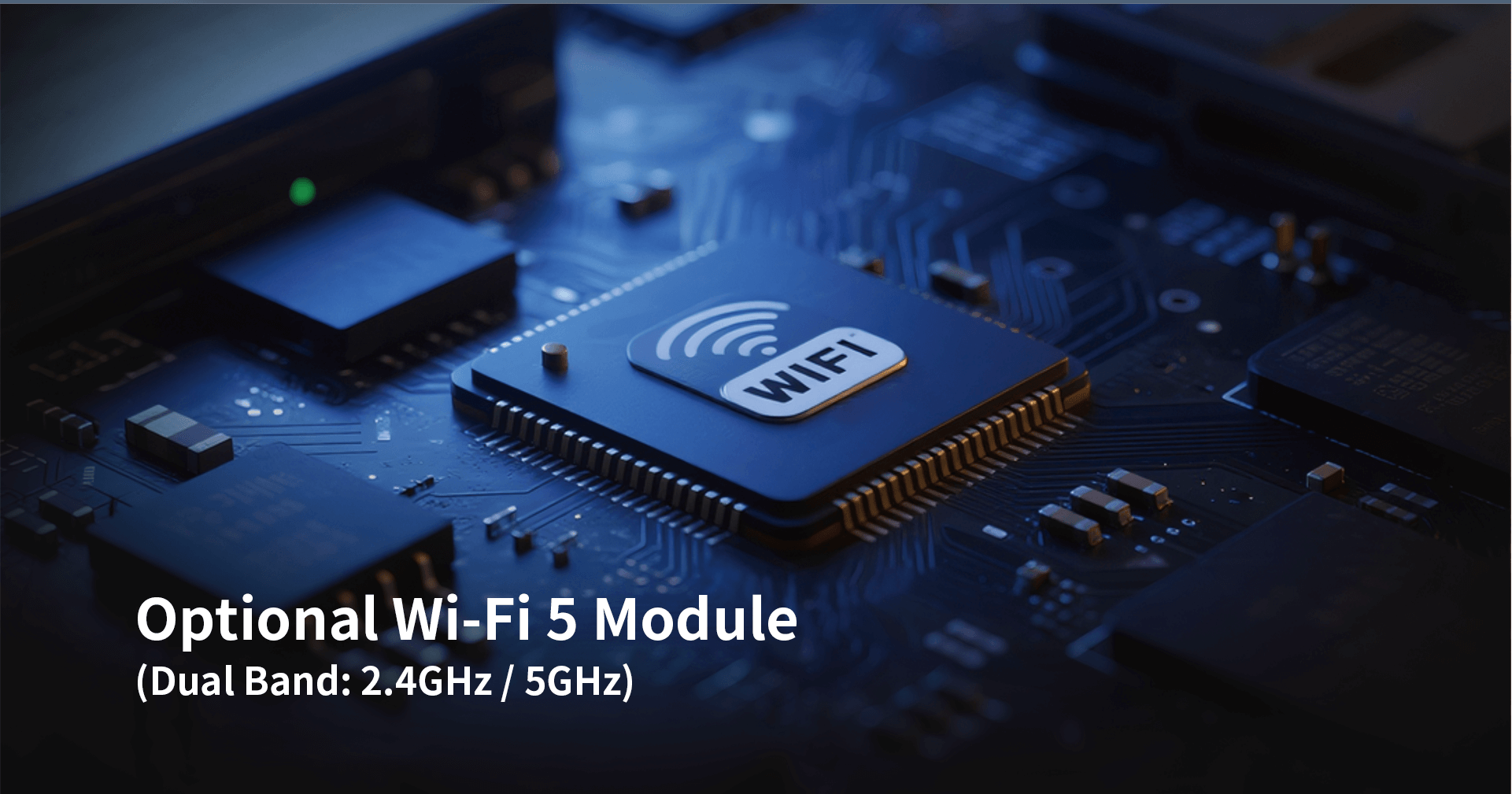

● Optional Wi-Fi5 module (dual-band, 2.4GHz/5GHz)
● Optional 4G module
● Support automatic network switching
● Optional Bluetooth
● Support Hanin Cloud connection
● Support printing of orders from Meituan and
● Ele.me takeaway platforms
