Specs
| 585 | 585L | ||
| Print Specification | Print Method | Direct Thermal | Direct Thermal |
| Resolution | 203dpi | 203dpi | |
| Print Speed | 100mm/s (Max.) | 100mm/s (Max.) | |
| Print Width | 48mm | 48mm | |
| Command | ESC/POS | ESC/POS | |
| Page Mode | Support | Do Not Support | |
| Paper Feeding Direction | Forward | Forward | |
| Paper Specifications | Type | Thermal receipt paper | Thermal receipt paper |
| Width | 58mm | 58mm | |
| Thickness | 50~80µm | 50~80µm | |
| Max. Outer Diameter of Paper Roll | 60mm | 60mm | |
| Characters and Barcode | Characters | Simplified Chinese/Traditional Chinese/Korean/ Japanese, 47 codepages | Simplified Chinese/Traditional Chinese/Korean/ Japanese, 47 codepages |
| Barcode | 1D | UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 | UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 |
| 2D | QR code, PDF417 | QR code | |
| Sensor | Out-of-paper detection, cover opening detection, over temperature detection, over voltage detection | Out-of-paper detection, cover opening detection, over temperature detection, over voltage detection | |

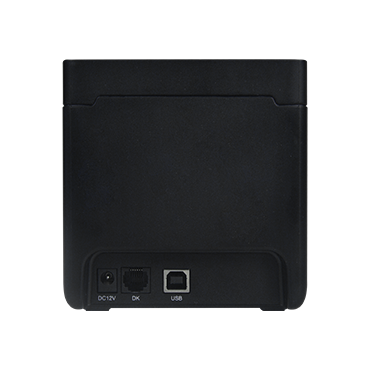

| Communication Interface | Standard | B-type USB, 24V cash drawer | B-type USB, 24V cash drawer |
| Optiona | Dual-mode Bluetooth、 serial interface | Dual-mode Bluetooth | |

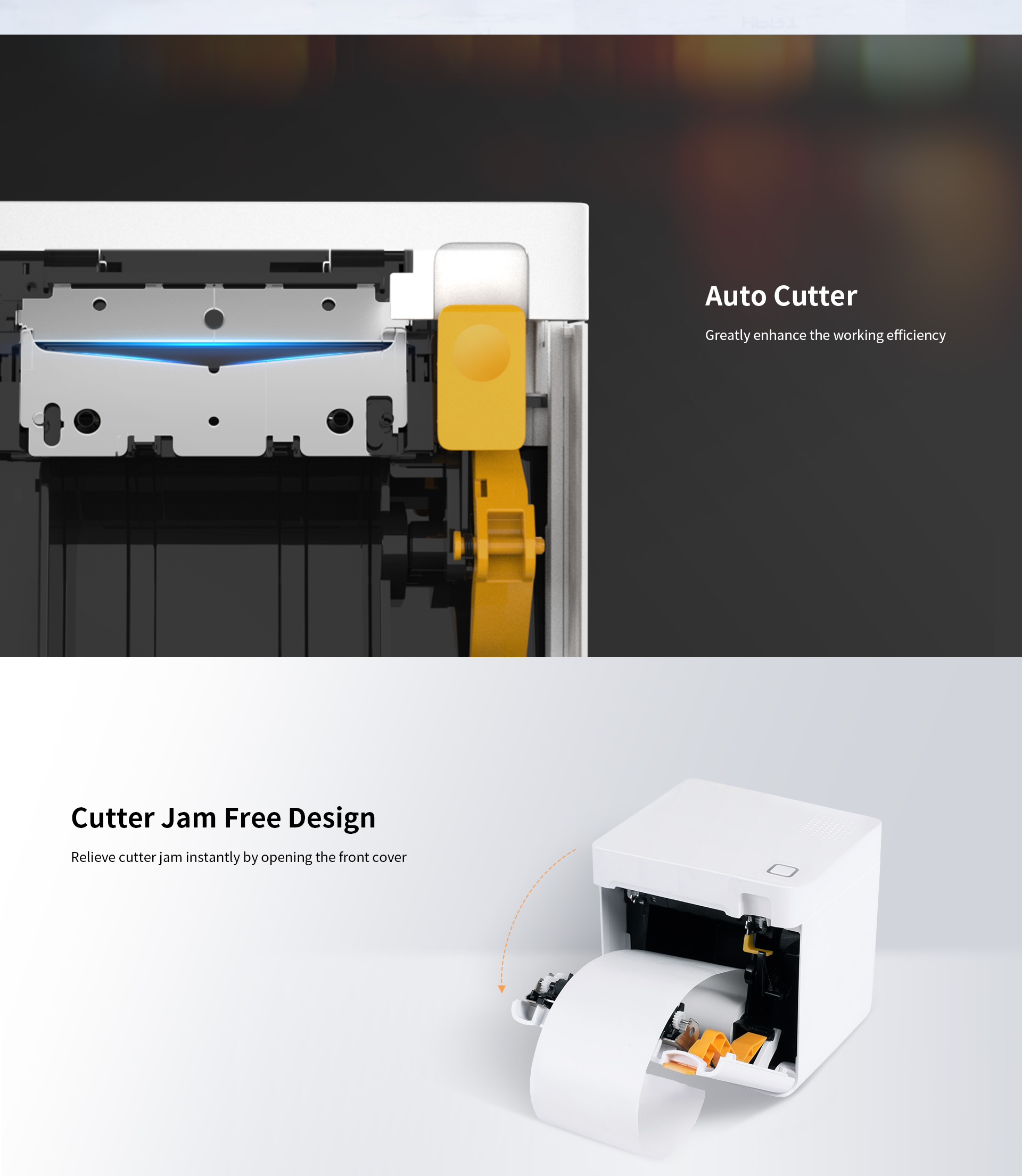

| Cutter | Type | Slide-type dual cutters | Tear Bar |
| Cutting Method | Partial cut | ||
| Solution for cutter jam | Auto cutter retreat with opening cover | ||
| Memory | RAM | 2MB | 256KB |
| Flash | 4MB | 4MB | |
| Electrical Parameters | Input | AC 100~240V, 50/60Hz | AC 100~240V, 50/60Hz |
| Output | DC 12V, 2A | DC 12V, 2A | |
| Reliability | TPH Lifetime | 100KM | 100KM |
| Cutter Lifetime | Half a million | ||
| Environmental Requirements | Operation: 0 to 40℃ humidity 20% to 85% non-condensing Storage:-20 to 60℃ humidity 5% to 95% non-condensing | Operation: 0 to 40℃ humidity 20% to 85% non-condensing Storage:-20 to 60℃ humidity 5% to 95% non-condensing | |
| Dimension (L×W× H, mm) | 110mmX106mmX114mm | 110mmX105mmX114mm | |
| Safety Standard | CCC、CE | CCC、CE | |
Features

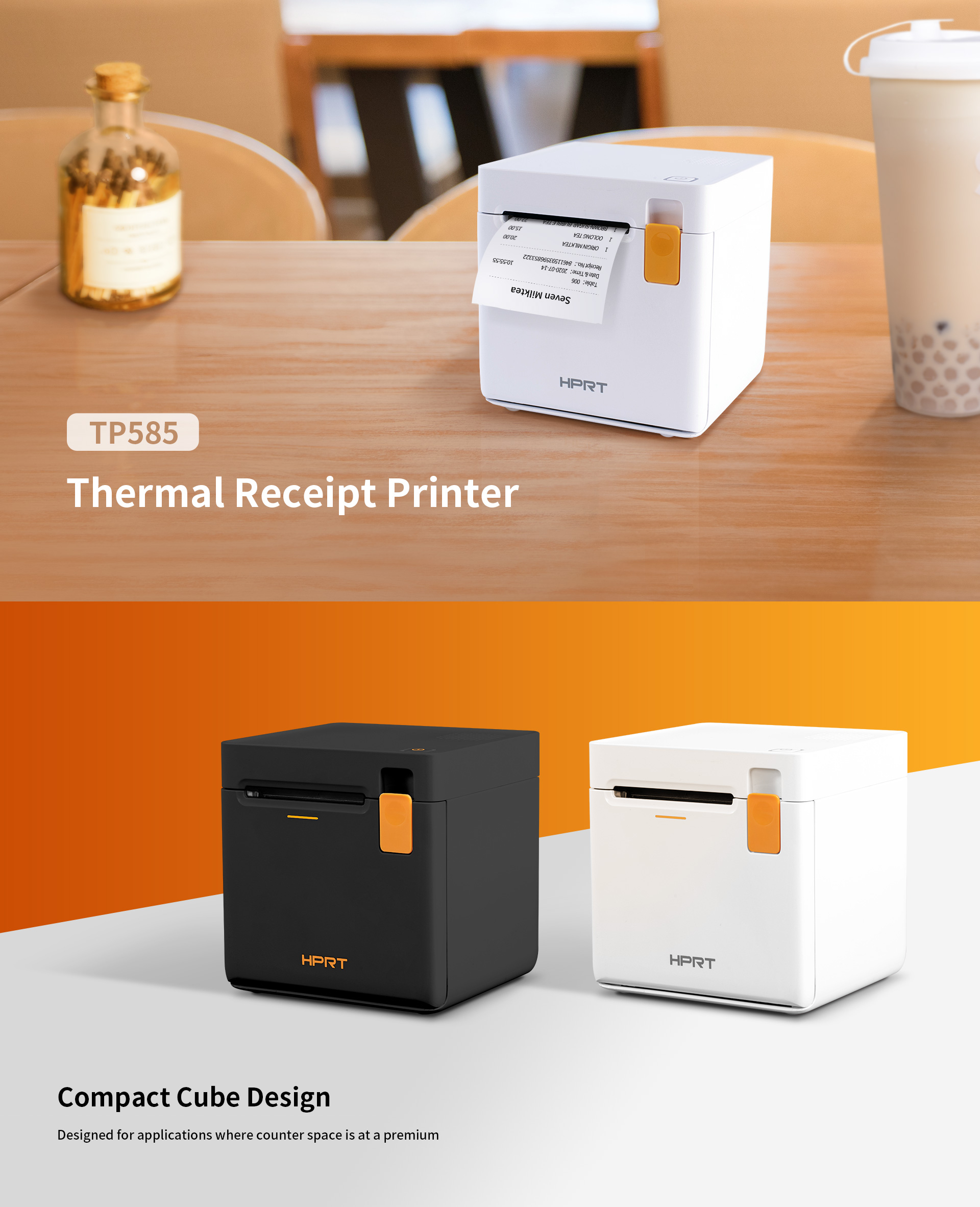

• Compact Cube Design
• Light and Fashion
• Support Multiple OS
• Bluetooth Option
• Error Reprint
• Clear Printing

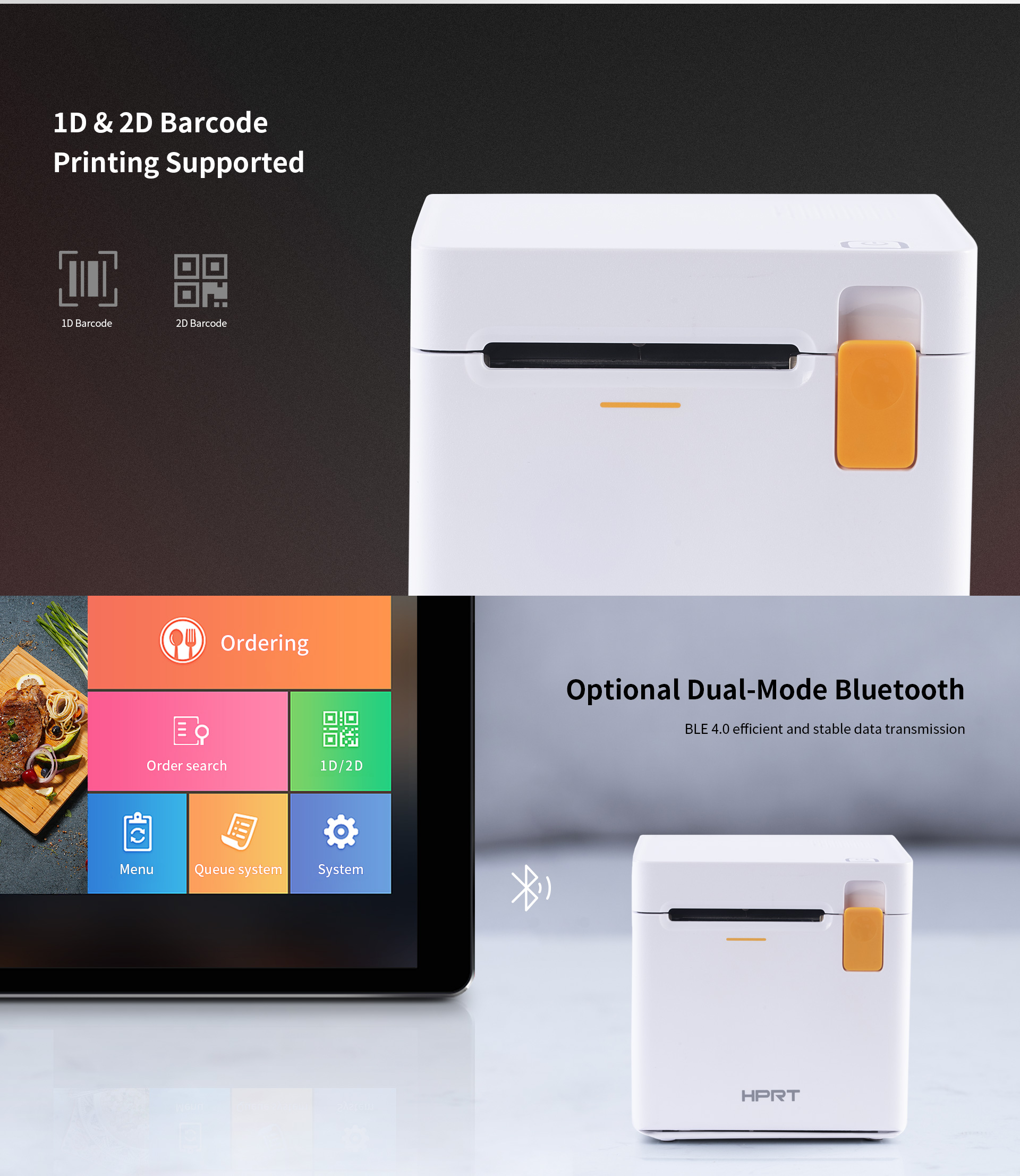

• 1D Barcode Printing
• 2D Barcode Printing
• Dual mode Bluetooth 4.0 optional
• Patent cutter technology
