Specifications

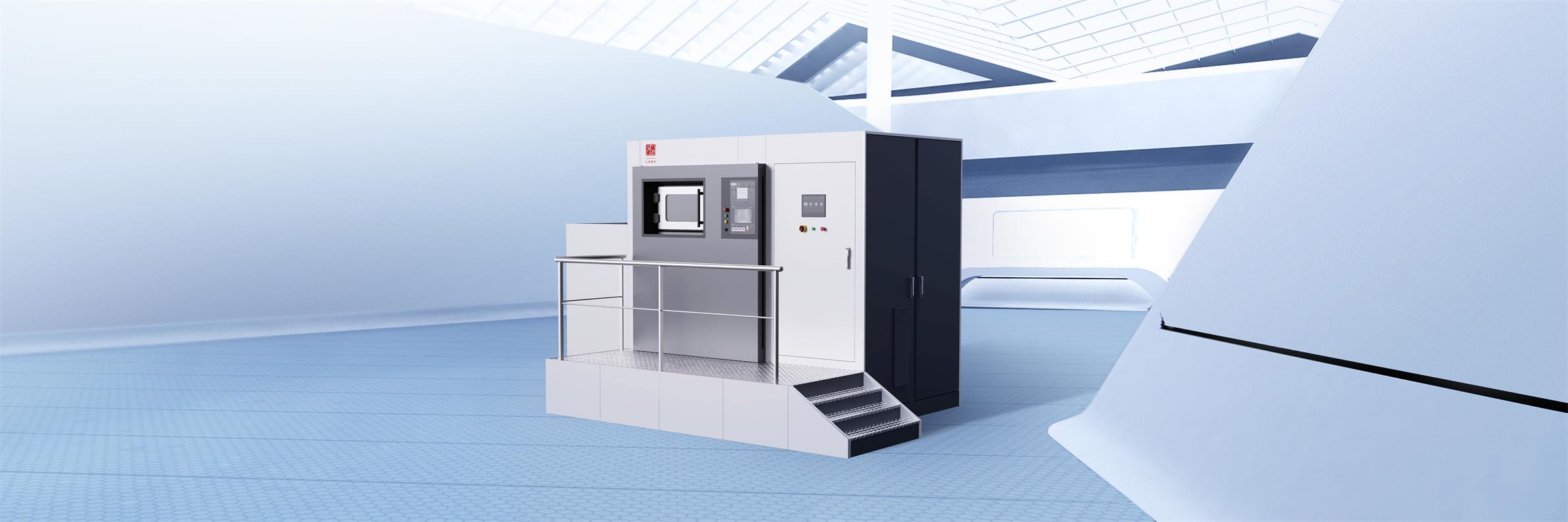

| Model | SLM-S480 | |
| Machine Parameters | Molding Space | 480×480×550 mm (Substrate Included) |
| Equipment Size | 4600×3060×2850 mm （L×W×H） | |
| Weight | Unloaded approx. 6 t | |
| Software | Windows 10 | |
| Power Supply | AC 380 V, 50 A | |
| Molding Speed | 80 cm³/h | |
| Data Interface | STL、OBJ、SLC | |
| Moldable Materials | Stainless steel, aluminum alloy, abrasive steel | |
| Laser | Laser Type | Continuous Fiber Laser |
| Laser Wavelength | 1080 nm | |
| Number of Lasers | Quad Laser (4×500 w) | |
| Optical Scan | Maximum Scanning Speed | 5 m/s |
| Spot Diameter | 73 μm | |
| Powder Spreading | Powder Layer Thickness | 0.02~0.12 mm |
| Powder Spreading Form | Spatula spreads powder in both directions | |
| Maximum Preheating Temperature | 200℃ | |
| Safety Protection | Minimum Oxygen Content | ≤100 ppm |
| Protective Gas | N2/Ar | |
| Atmospheric System | Highly efficient protective gas circulation system |
Features
• Multi-oscillator Printing Strategy: The multi-vibrator printing strategy based on the region differentiation method ensures high dimensional accuracy and better densities at the splices.
• High Precision of Molded Parts: Complete closed-loop inspection system, high precision molded parts, can be used to make precision prototype parts.
• Support Large-size Models and Small-batch Customization: Large molding size, especially suitable for single large parts or small quantities of functional parts custom manufacturing.
• Permanent Cartridge: Realize one-stop solution from design to final product (design, printing, post-processing).
• One-stop Solution: The use of permanent cartridges reduces the number of cartridge replacements in the atmosphere system; powder inerting greatly improves the safety performance of the whole machine.
