Specs
| Item | Parameter | |
| Printing | Printing | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) | |
| Printing Speed | 4 level, 180mm/s | |
| Printing Width | 72mm | |
| Printing Length | 25mm-300mm | |
| CPU | 32-bit RISC CPU | |
| Memory | RAM | ≧2MB |
| Flash | ≧2MB | |

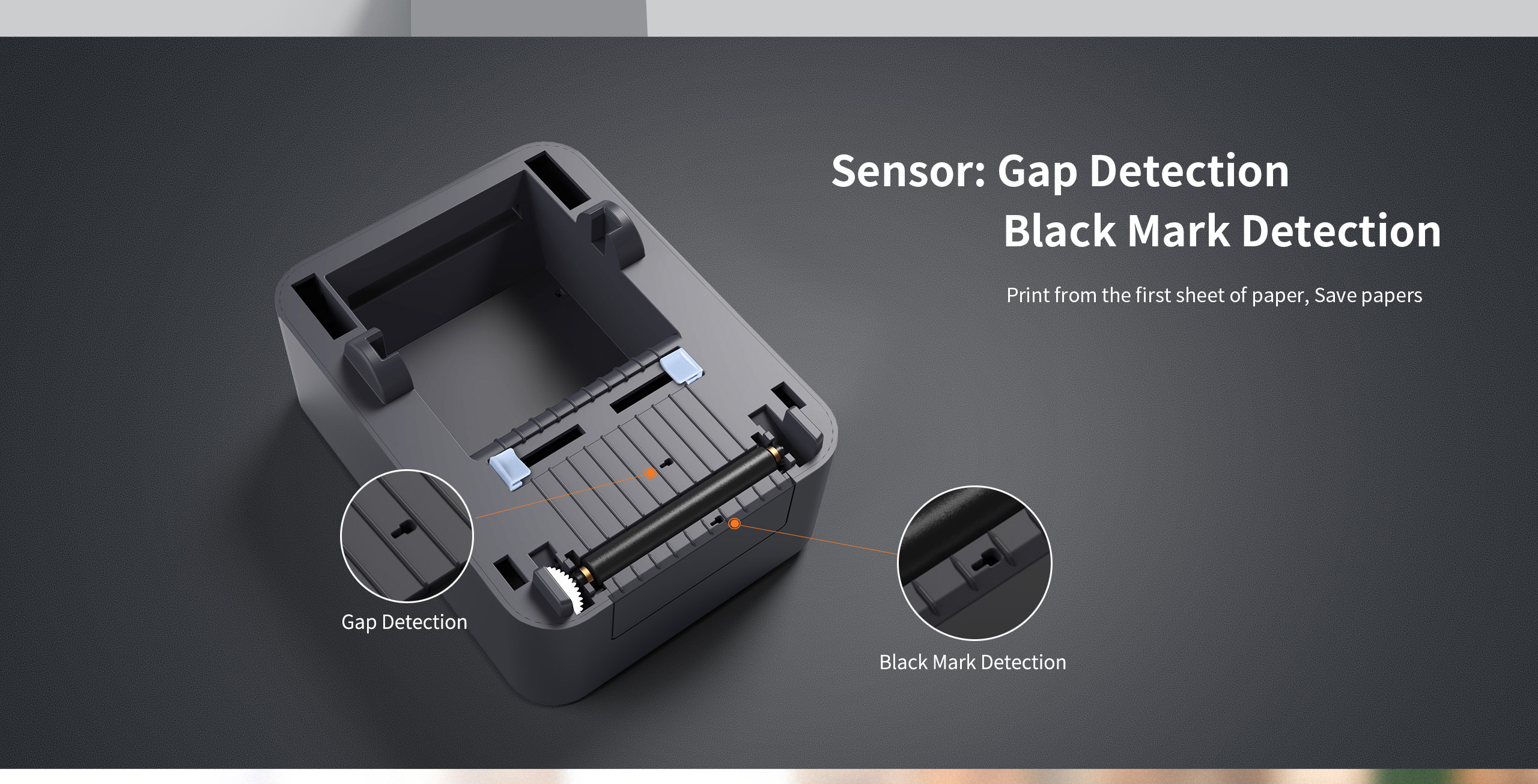

| Detection | Sensor | Paper Out sensor, gap sensor, head-up sensor, black mark sensor |
| Media | Types | Fold paper or roll paper, continuous paper, label, black mark paper, die cut paper |
| Width | 25mm‒ 80mm | |
| Thickness | 0.003’’ (80μm) ‒ 0.0087’’ (220μm) | |
| Core Diameter | 1’’ (25.4mm), 1.5’’ (38.1mm) | |
| Roll Paper Diameter | Max. Φ100 mm (O.D.) | |
| Protocols | TSPL | |
| Software | Label Design Software | Hmark |
| Driver | Windows 2000,Win7,8,10 | |
| Resident Fonts | Chinese: GBK FontA 12x12dots, FontB 24x24dots | |
| English: ASCII 8×16, 12×24dots | ||
| Barcodes | 1D | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5 |
| EAN-8,EAN-13,EAN-128, UPC-A, UPC-E | ||
| 2D | PDF-417, QR code | |
| Interfaces | USB and Ethernet or USB and Bluetooth | |

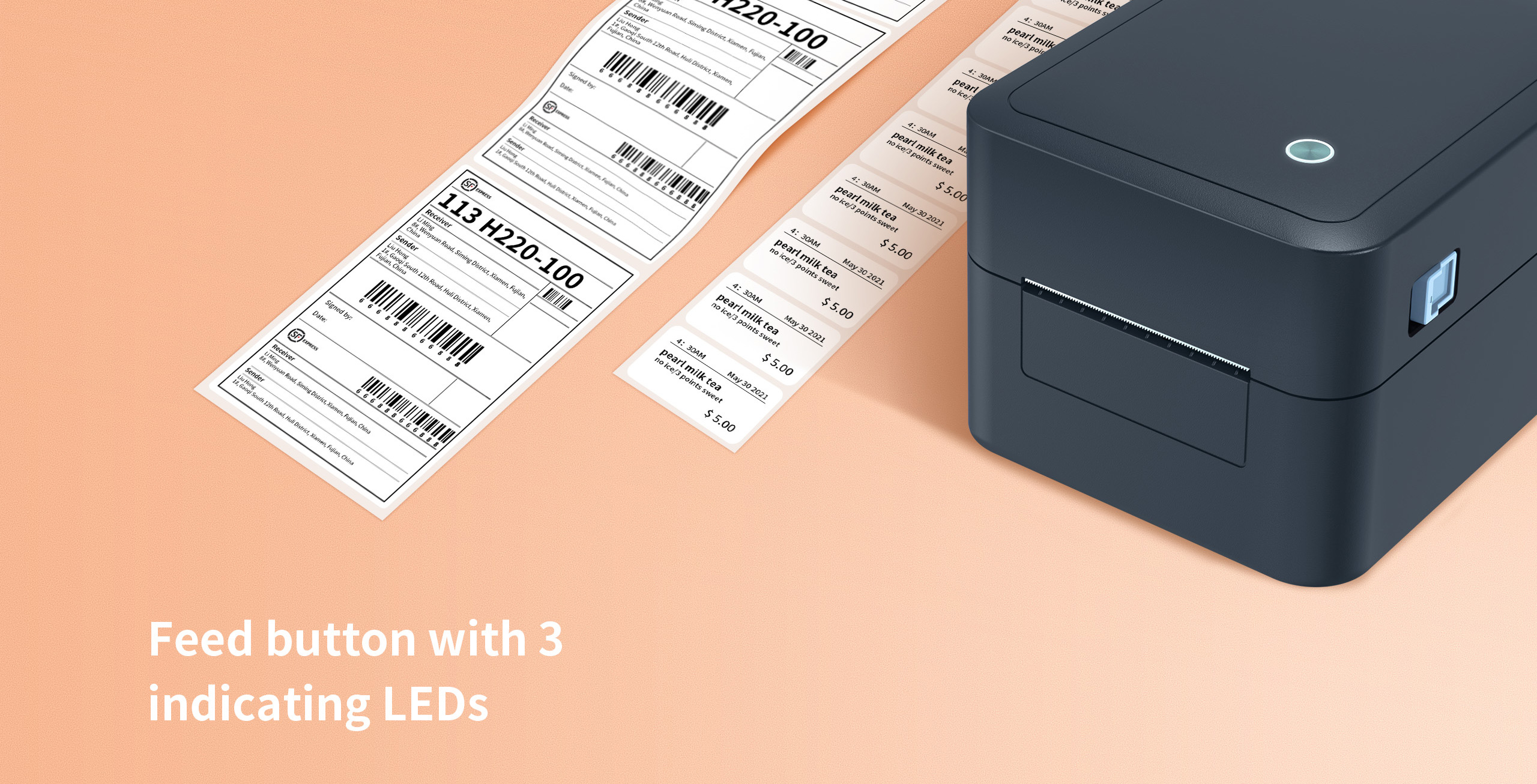

| Control Panel | One feed button with 5 color indicator LEDs | |
| Power Supply | Adapter | Input: AC 220 V output: DC 24 V / 1.5 A |
| Environment | Operation | 41℉(5℃)-104℉(40℃)，30%-85%，non-condensing |
| Storage | -4℉(-20℃)-122℉(70℃)，10%-90%，non-condensing | |
| Physical Characteristic | Dimension | 206*155*133.5mm（L*H*W） |
| Weight | 1.04kg | |
| Reliability | TPH 30 KM | |
| Options & Accessory | External fold paper holder, external paper roll holder | |
| Agency Approval | CCC、CE、FCC |
Features
• Install the driver with one-click, without setting

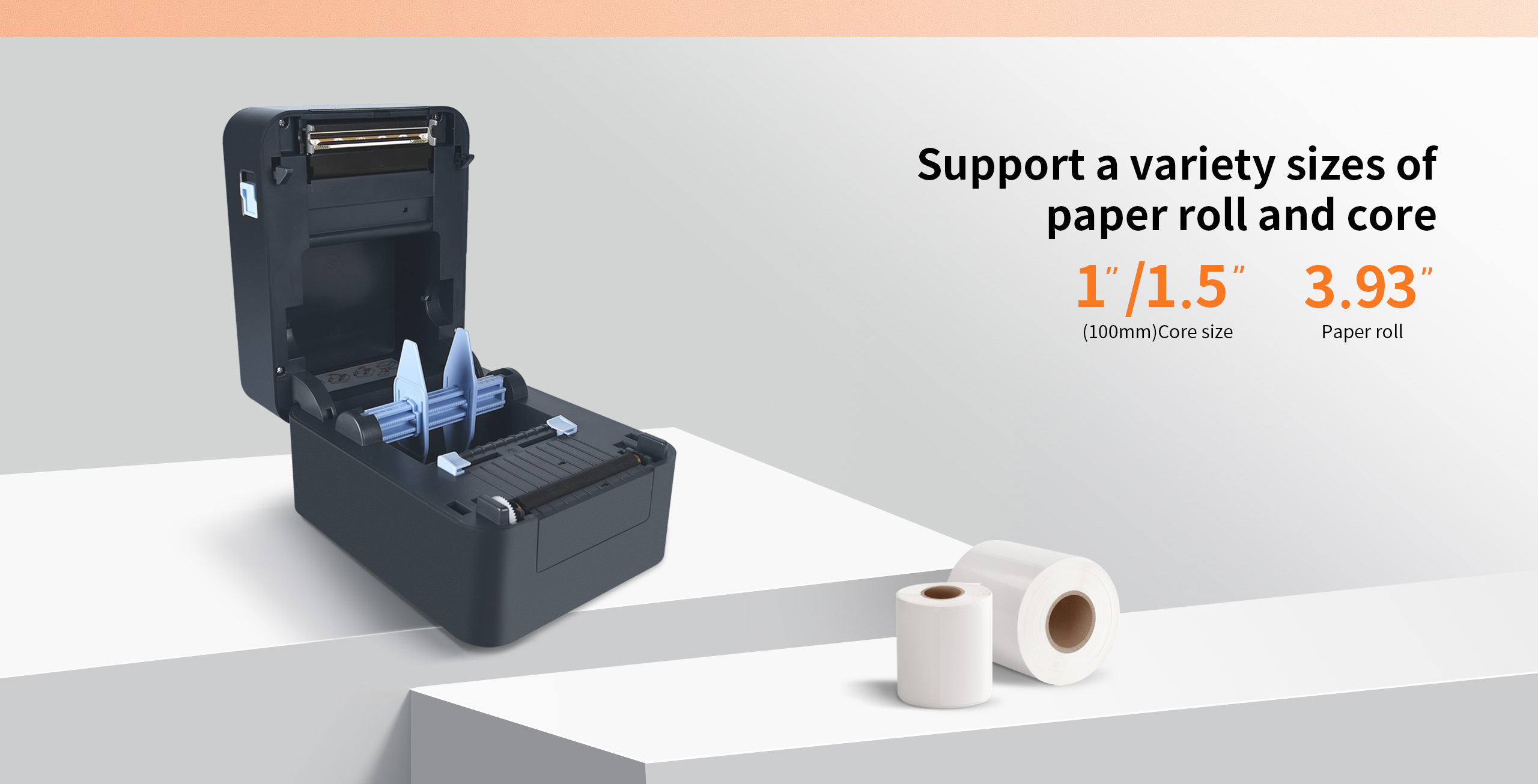

• Support various of paper roll & core

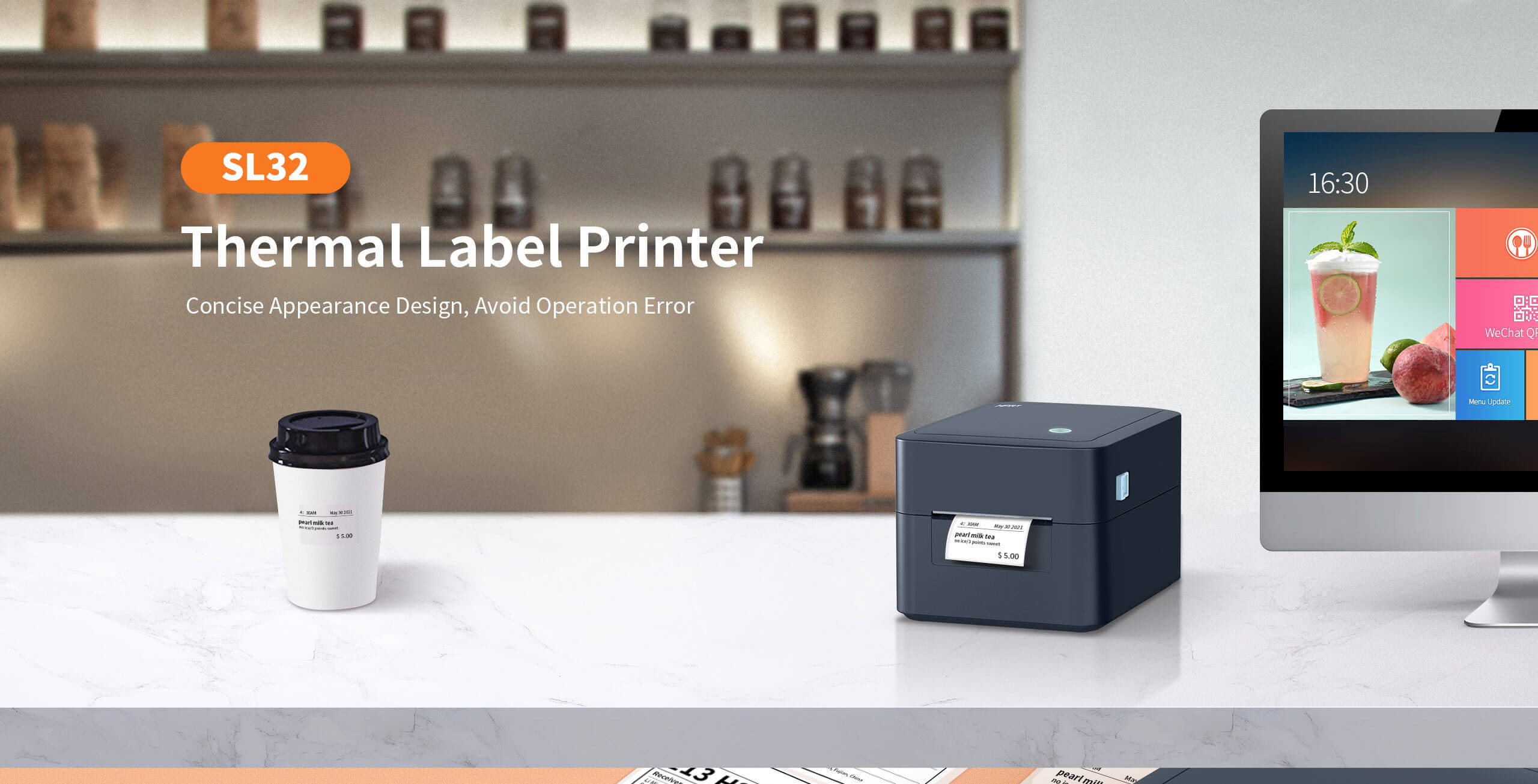

• Simplify the structure, avoid the wrong operation

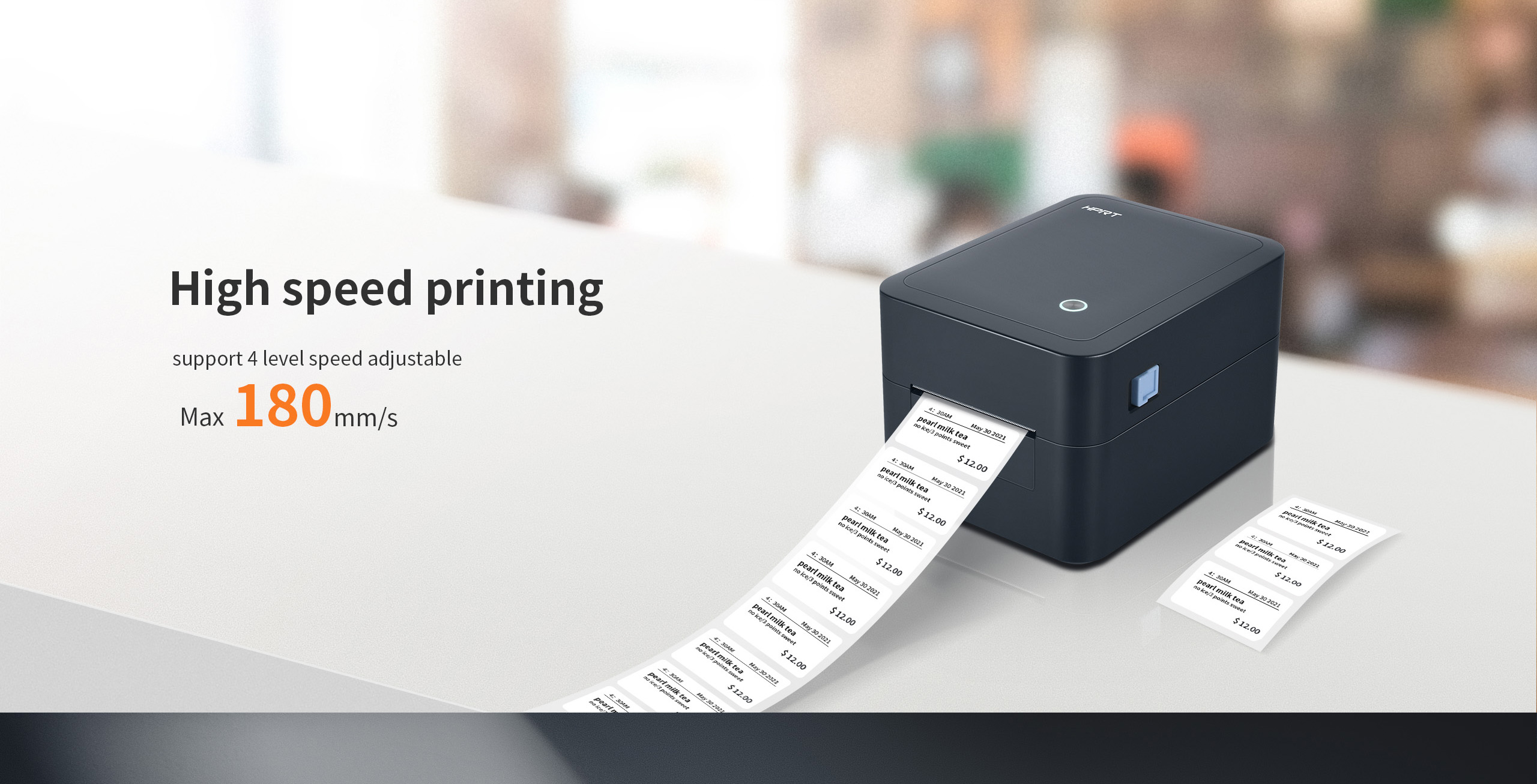

• High printing speed, 4 level adjustable, MAX180mm/s

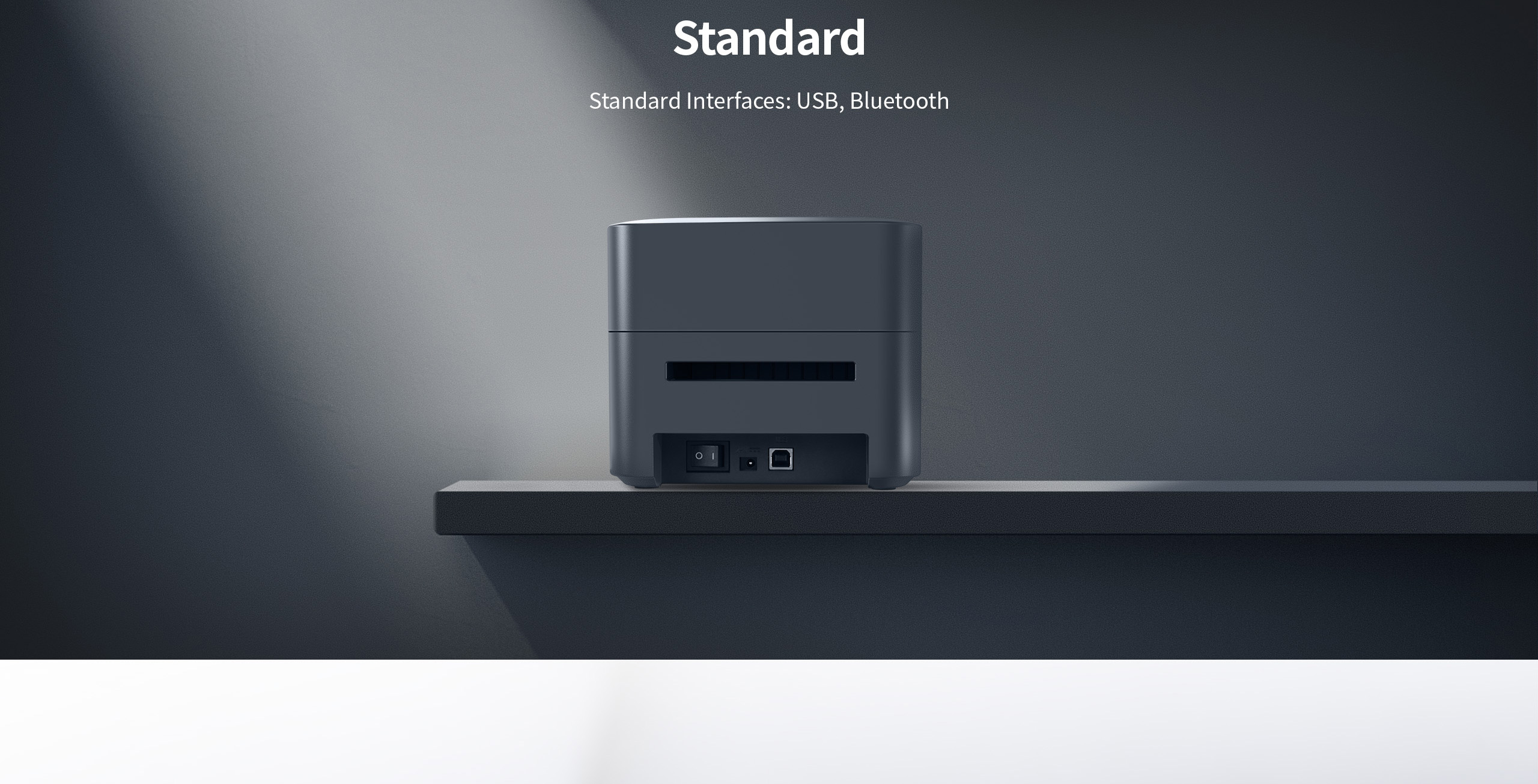

• Built-in Bluetooth, USB interface
