Specs
| Model | LCD-L298 |
| Molding Principle | LCD (Selective Area Light Transmission Technology) |
| Lightsource Type | COB Lightsource + Fresnel Lens |
| Light Source Wavelength Range | 405 nm |
| Printing Layer Thickness | 0.01 ~ 0.3 mm |
| XY Printing Accuracy | 46 μm |
| Printing Resolution | 6480 x 3600 dpi (8K) |
| Effective Printing Dimensions | 294 x 160 x 400 mm (L x W x H) |
| Printing Speed | 20 ~ 80 mm/h |
| Touchscreen | 13.3" |
| Equipment Size | 502 x 458 x 890 mm (L x W x H) |
| Weight | Approx. 45 kg |
| Motherboard | Embedded Industrial Motherboard |
| Operating System | Android 10 |
| Supply Voltage | AC 220 V |
| Power Wastage | 700 W |
| Operating Temperature | The dynamic temperature is adjustable up to 50℃ |
| Supported Materials | Photosensitive Resin |
| Supported File Formats | STL |
Features

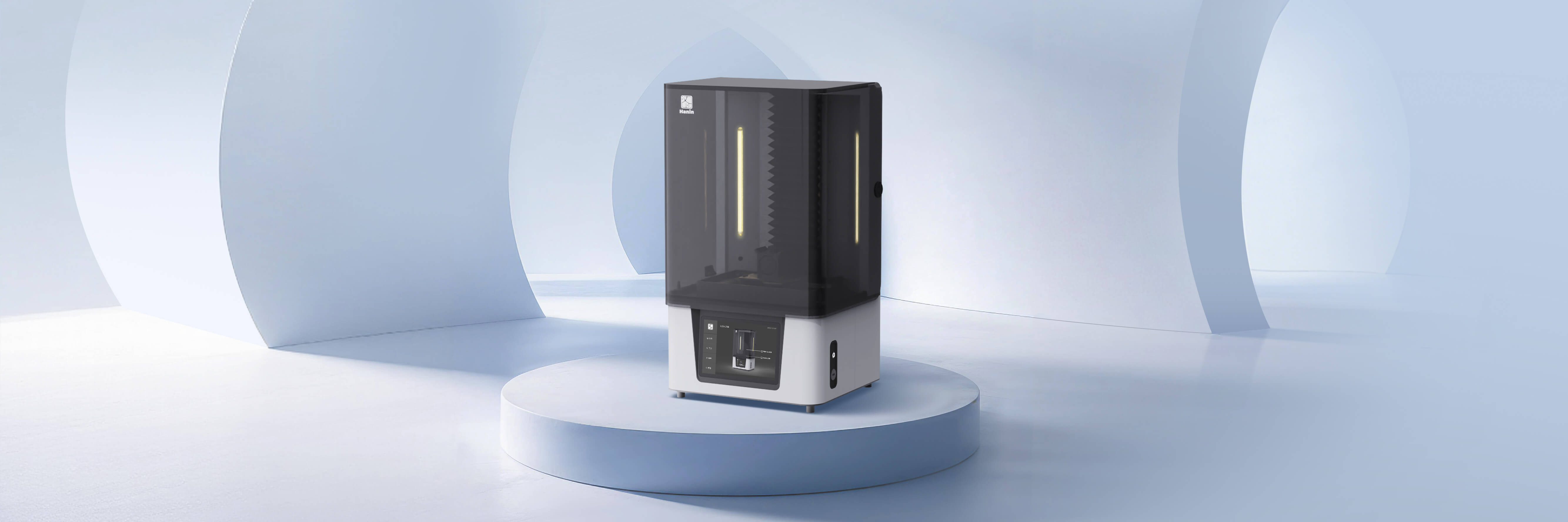

1. Professional Elastomer 3D Printer
Optimized for elastomer resin materials, enabling flexible structural parts for applications such as footwear, robotics, and industrial manufacturing.
2. 8K Ultra-High Precision LCD Resin Printing
Featuring 6480 × 3600 (8K) resolution with 46 μm XY accuracy, delivering highly detailed models with smooth surface quality.
3. Large Build Volume
Maximum build size of 294 × 160 × 400 mm, ideal for producing large prototypes or multiple parts in a single print.
4. Advanced Optical System
Equipped with a COB light source and Fresnel lens optical system to ensure uniform light distribution and stable LCD resin printing performance.
5. Wide Range of Applications
Suitable for footwear, consumer electronics, robotics, medical rehabilitation, and industrial manufacturing, enabling professional elastomer resin 3D printing solutions.
