Specs
| Items | Specifications | |
| Printing Spec | Print Method | Direct thermal |
| Resolution | 203 dpi | |
| Print Speed | Max.80mm/s | |
| Print Width | Max.72mm | |
| Print Protocol | ESC/POS；CPCL | |
| Media Spec | Type | Thermal label paper, Receipt, Black mark paper |
| Width | 25mm~80mm, adjustable | |
| Paper Roll Outer Diameter | Max.50mm | |
| Thickness | 53µm~150µm | |
| Paper-out Direction | Upward | |
| Communication Interface | Standard | USB Type-C, Dual-mode Bluetooth 5.2 |

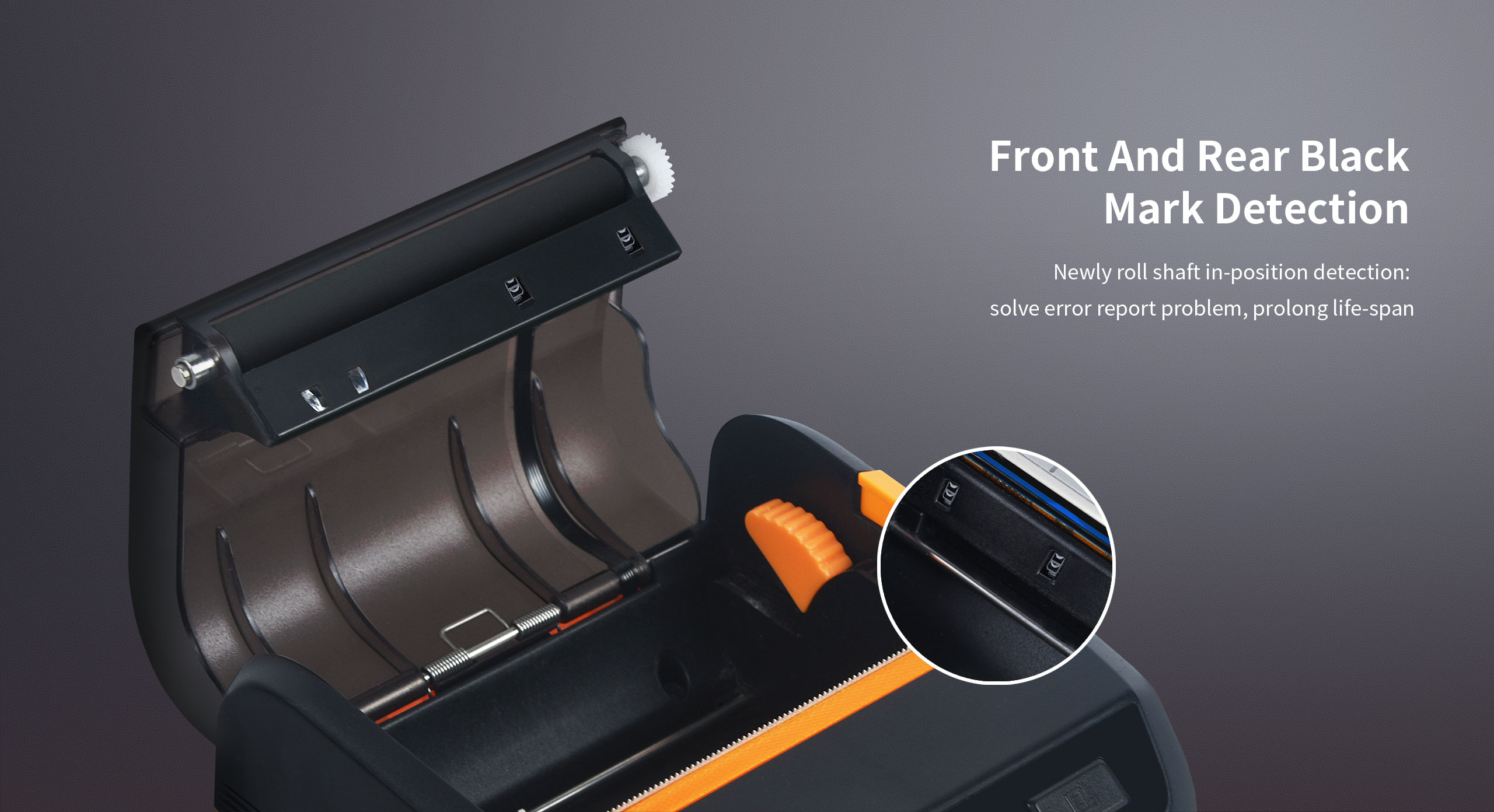

| Sensor | Standard | Out-of-paper sensor, gap sensor, cover-opening sensor, TPH over temperature sensor, battery temperature sensor, black mark sensor |
| Optional | N/A | |
| Hardware | RAM | 4MB |
| Flash | 8MB | |
| Buzzer | Built-in | |
| Display | Dots: 96×39 | |
| Character and Barcode | Character | Alphanumeric, Simplified Chinese, Traditional Chinese, English, other languages |
| Barcode | 1D Code: | |
| Code 39, Code 93, UCC/EAN128, Code 128, Codebar, Interleaved 2-of-5, UPC-A, | ||
| UPC-E, 2 and 5 digit add-on, | ||
| EAN-8, EAN-13, 2 and 5 digit add-on, Industrial 2 of5 | ||
| 2D Code: | ||
| PDF417, QR Code | ||
| Cutting Method | Tear bar | |
| Power Supply | Input | AC 100~240V, 50/60Hz |
| Output | DC 5V, 1A | |
| Battery Spec | Type | Rechargeable Lithium battery |
| Voltage | 7.4V | |
| Capacity | 2000mAh | |
| Reliability | TPH Life | 50km |
| Drop height | 1.5m | |
| Environmental Parameters | Operating | 0°C~45°C , 25%~85%RH, non-condensing |
| Storage | -20°C~70°C, 5%～95%RH, non-condensing | |
| Physical Parameters | Dimensions (L x H x W) | 110×117.8×58mm |
| Weight | 400g (with battery) |
Features

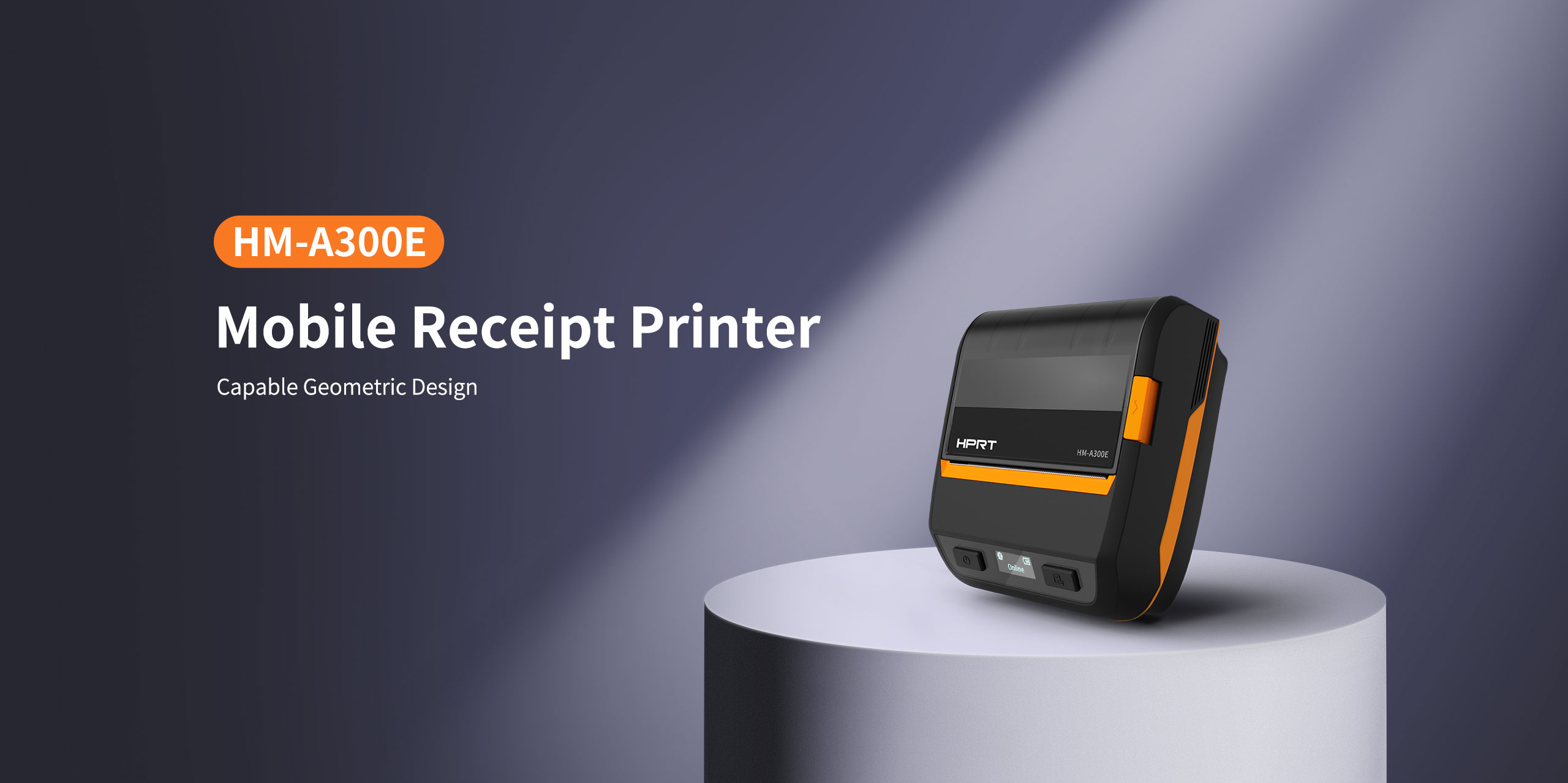

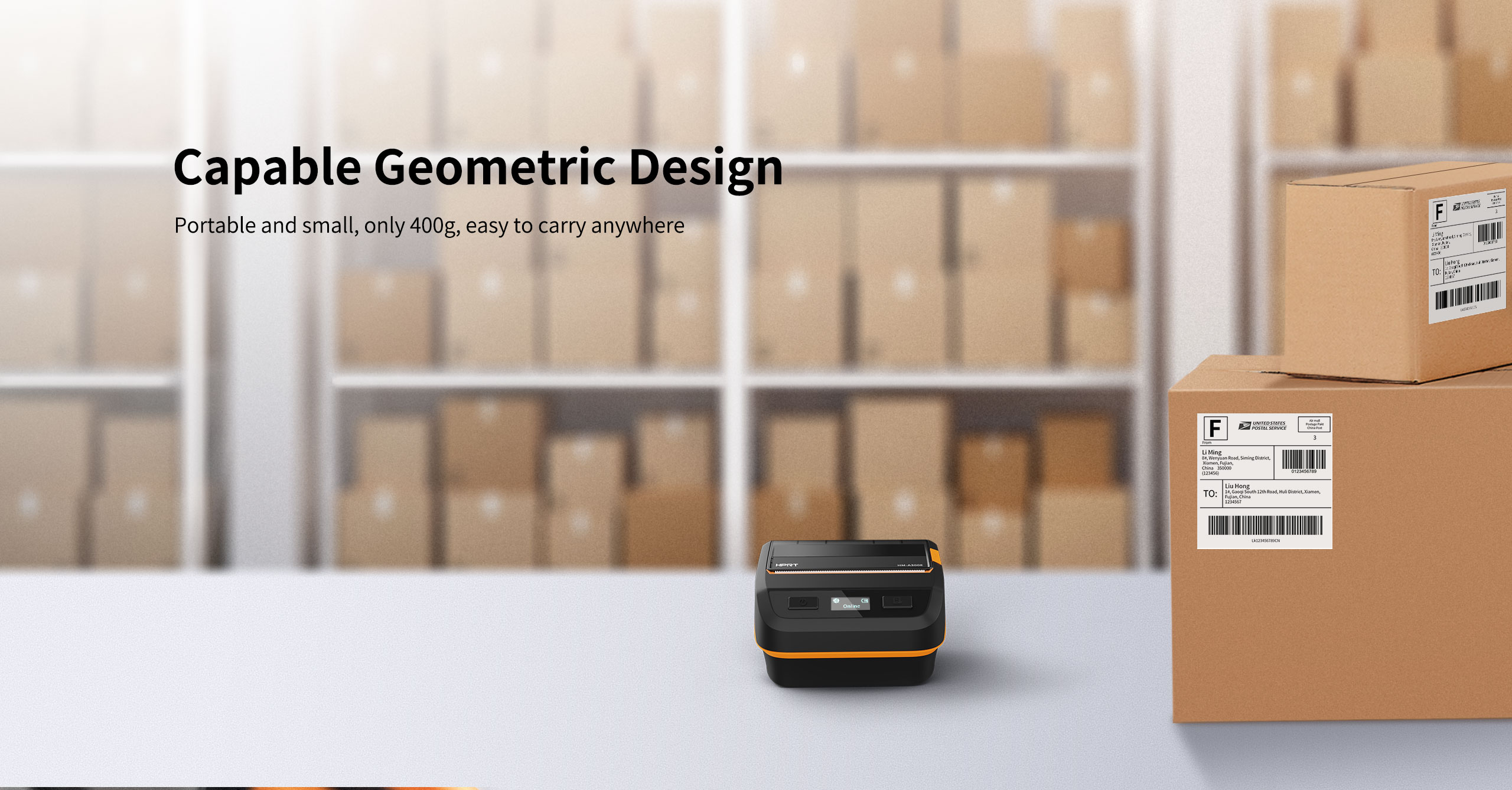

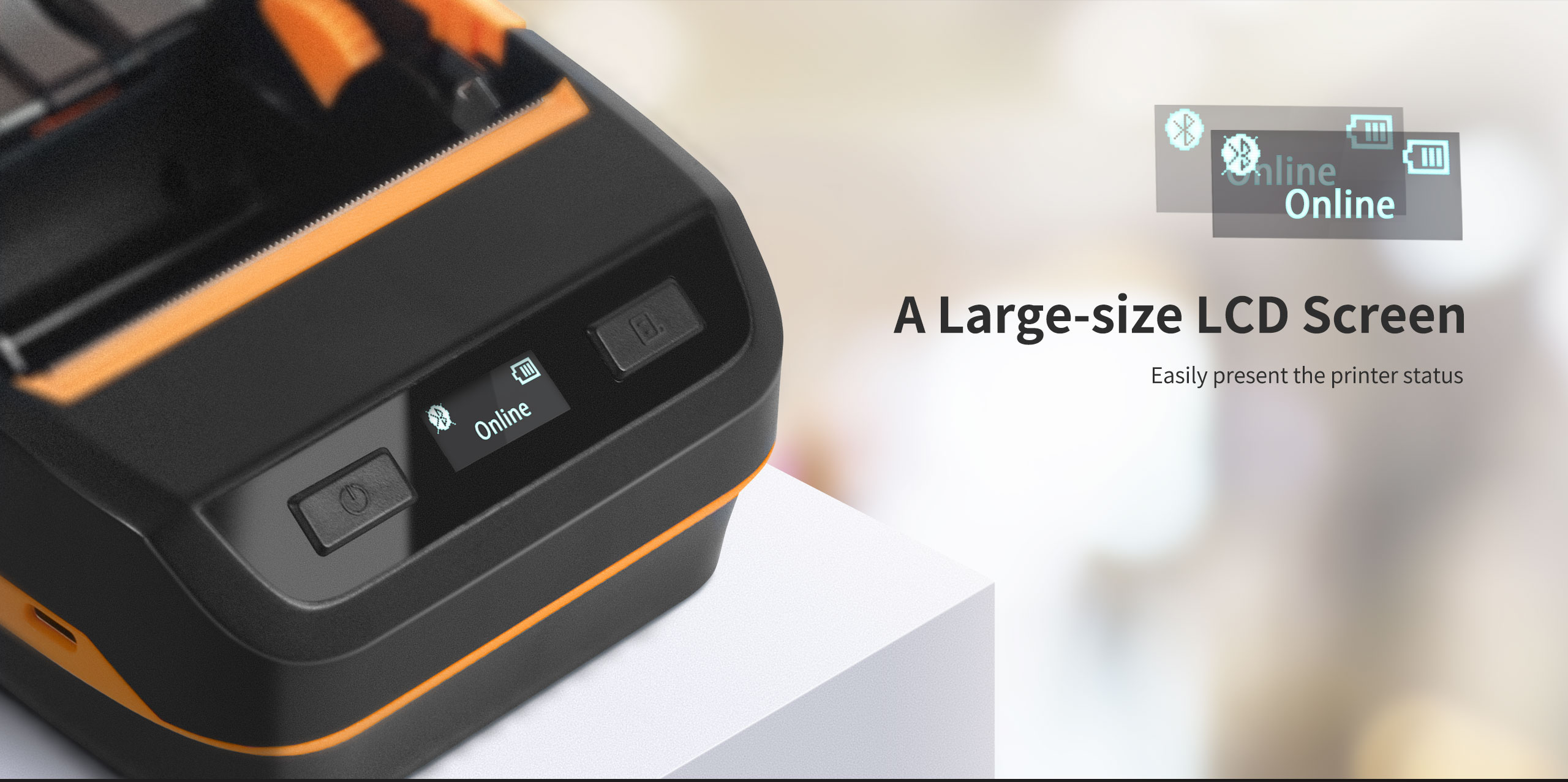

• Capable geometric design with a large-size LCD screen

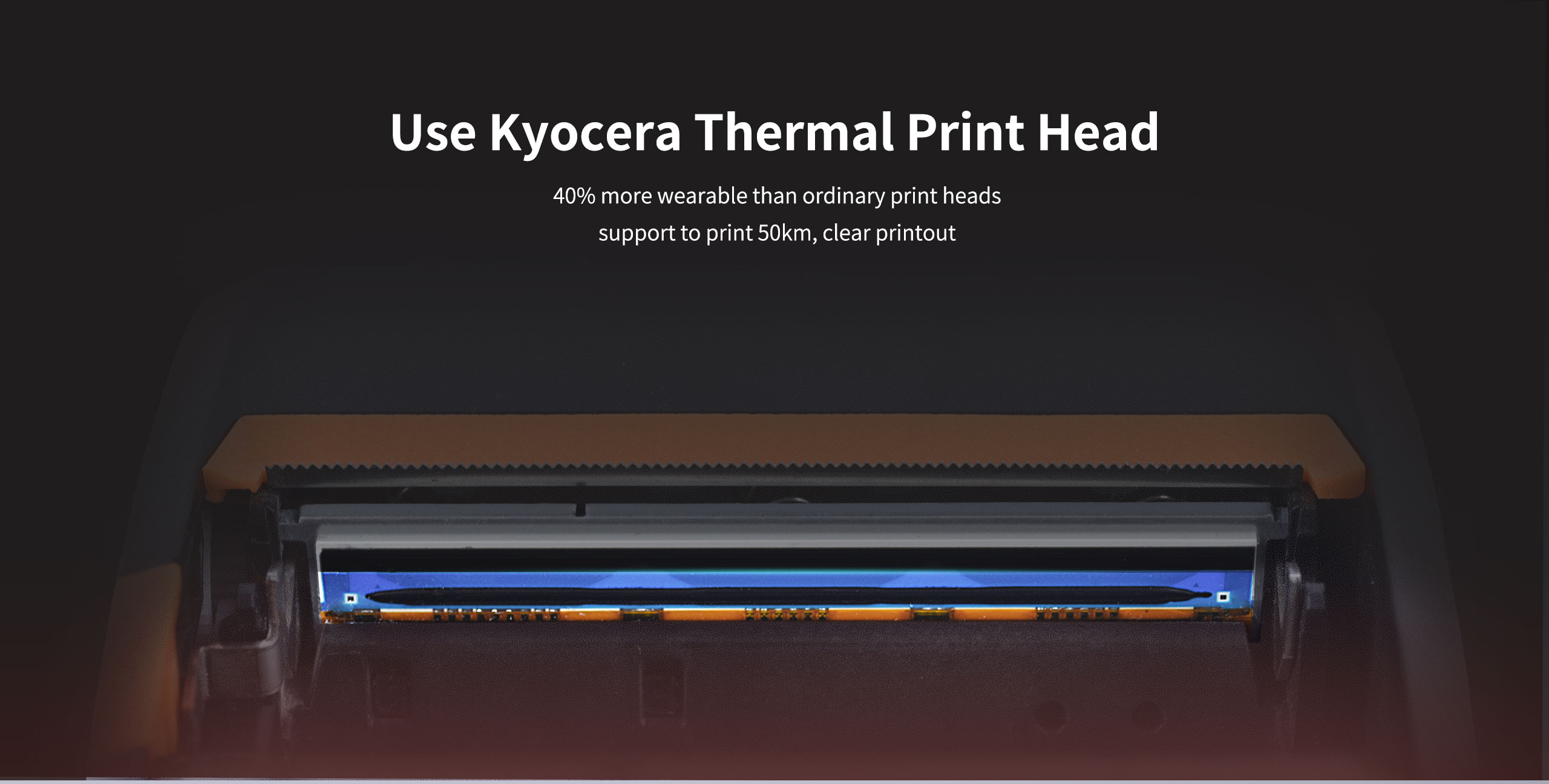

• Kyocera thermal print head, 40% more wearable, clear printout.

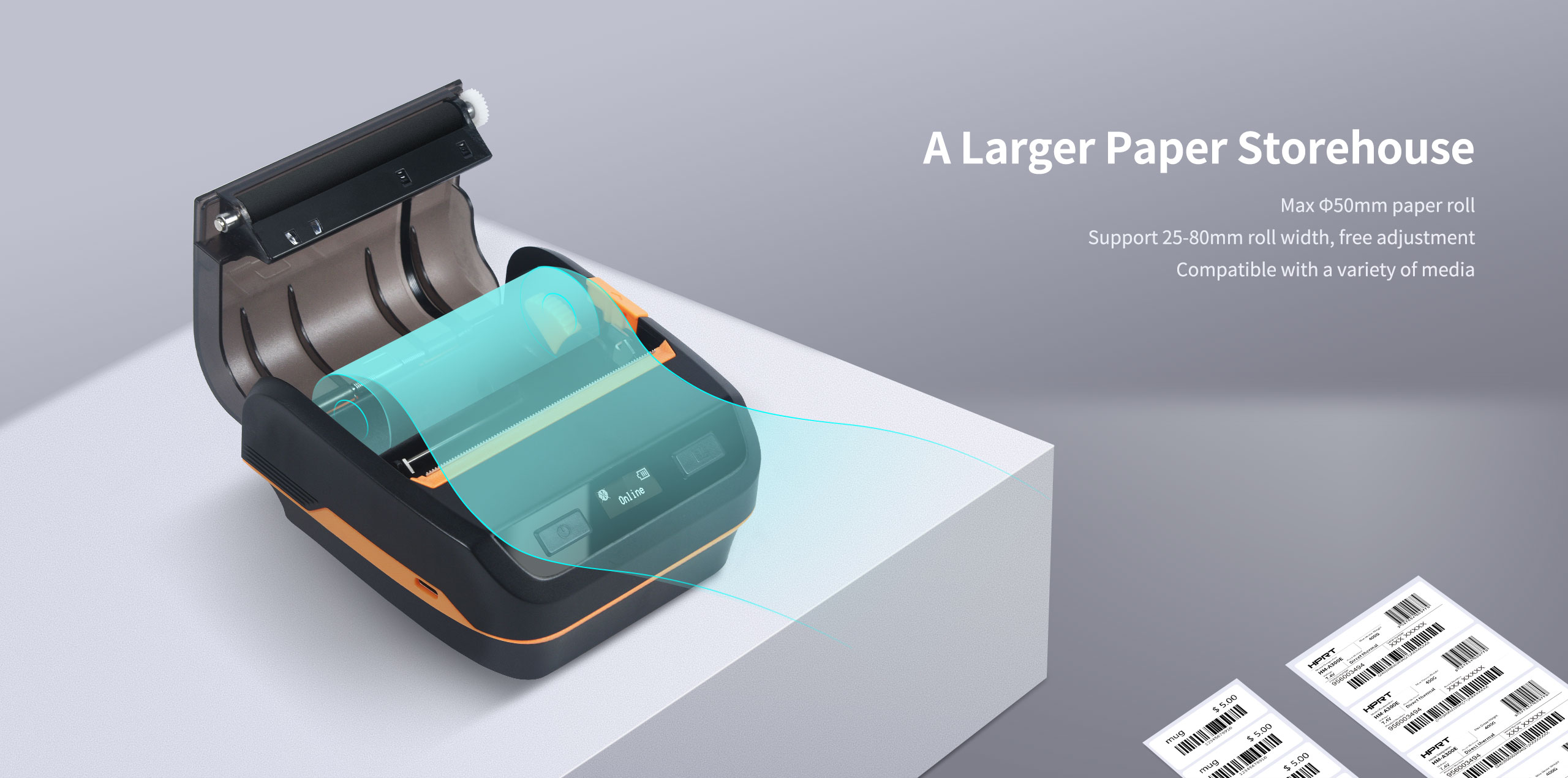

• Large paper storehouse, Support 25-80mm roll width, free adjustment

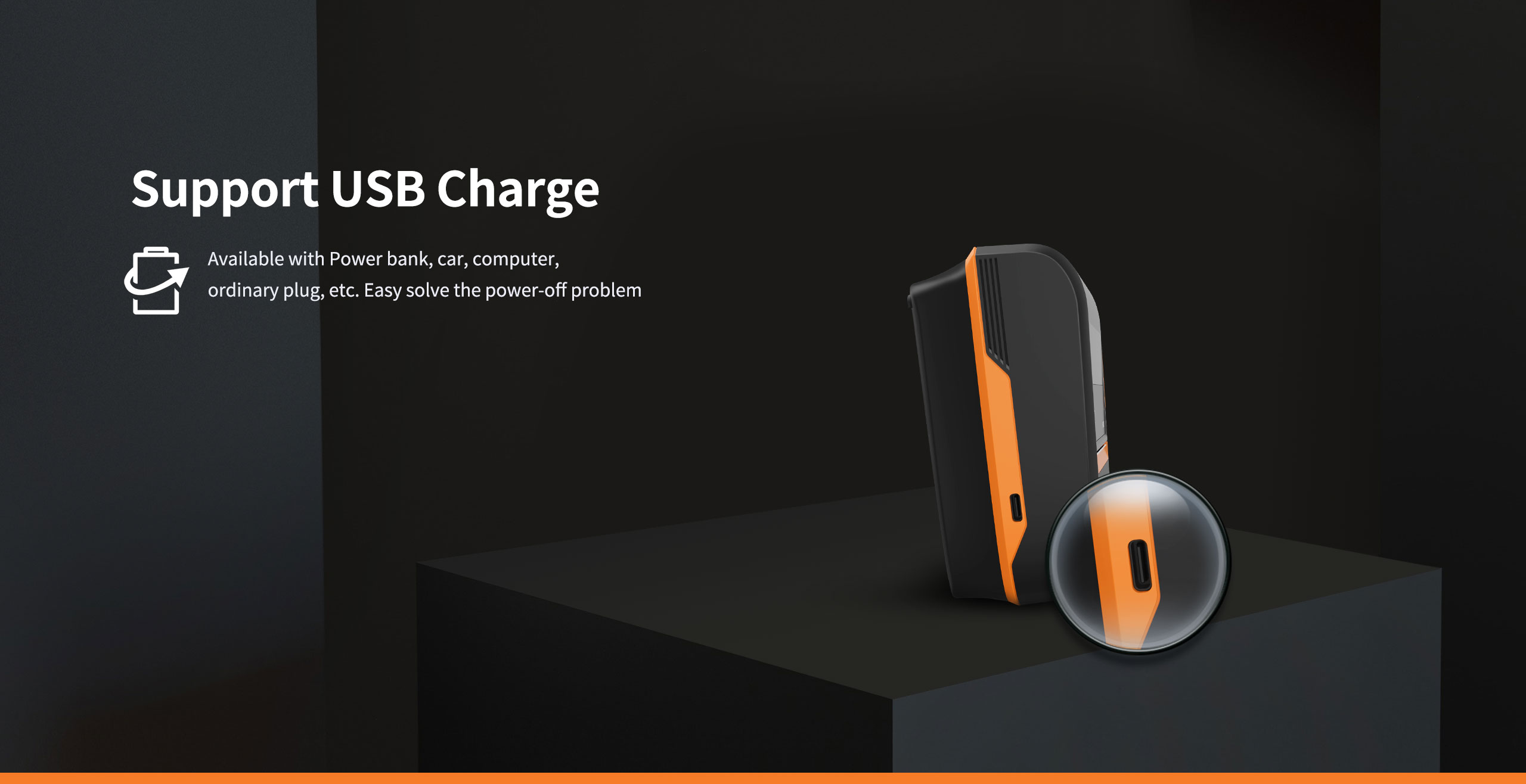

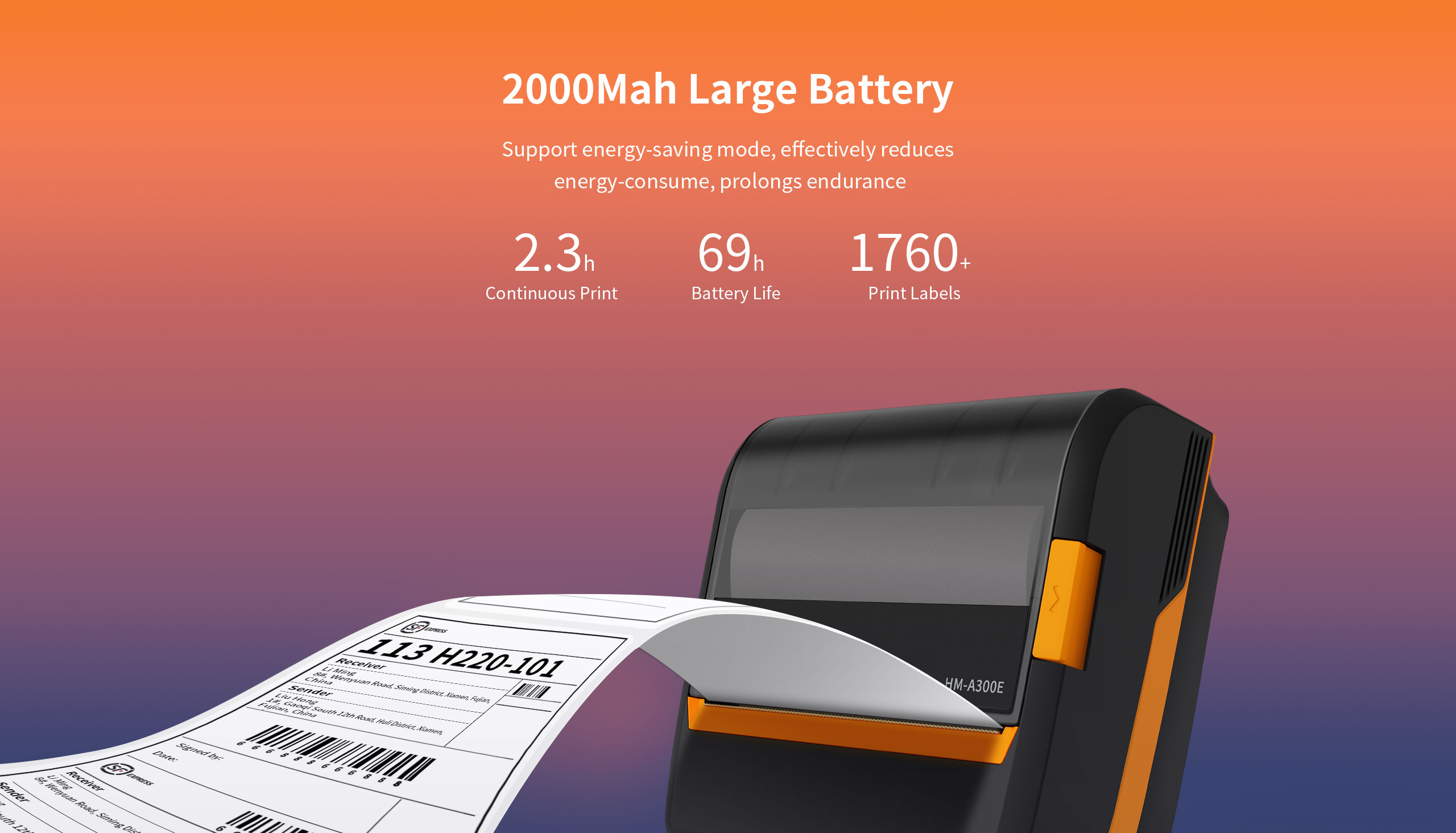

• Support USB charge, 2000Mah large battery

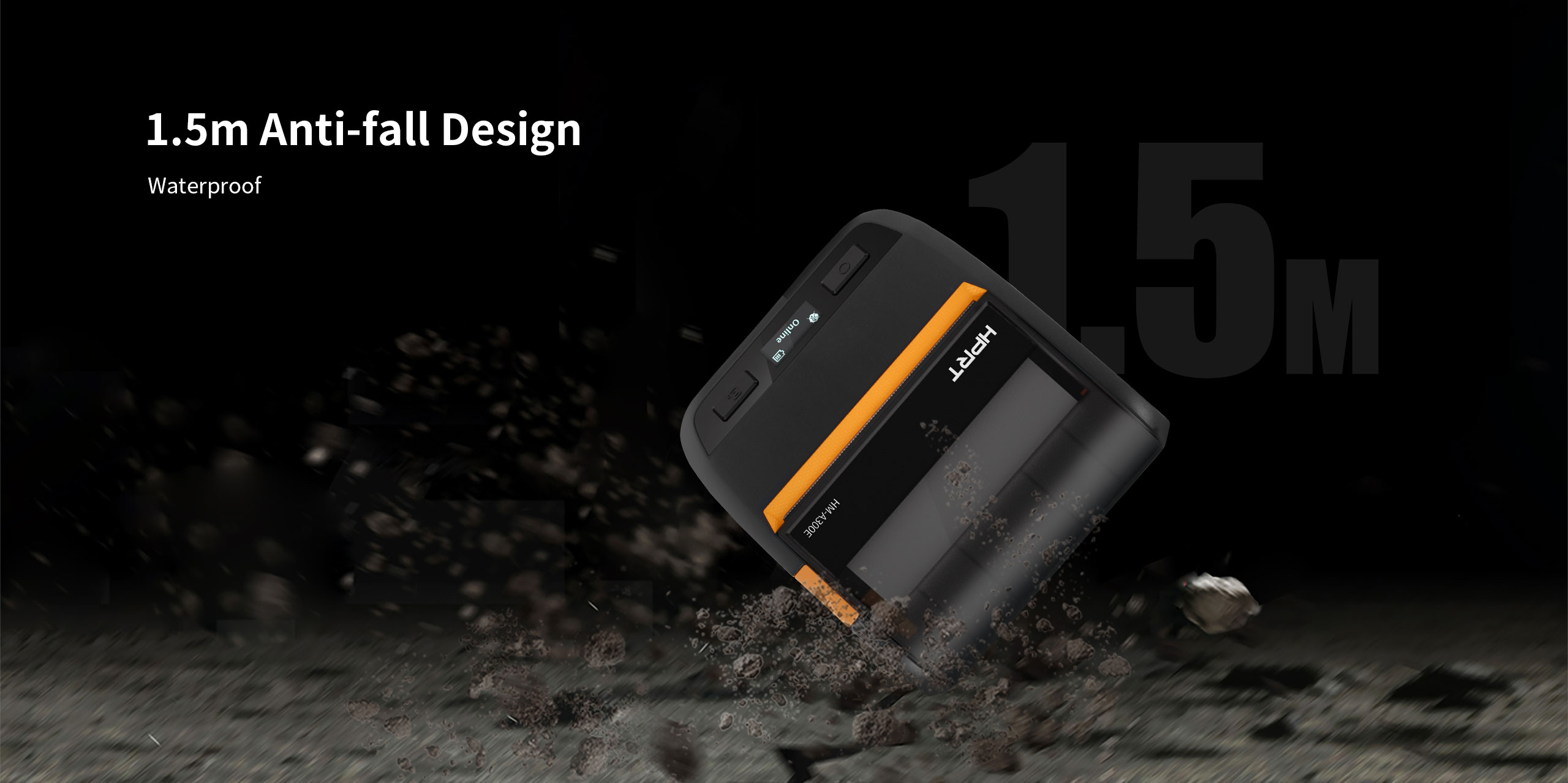

• 1.5m anti-fall design & waterproof

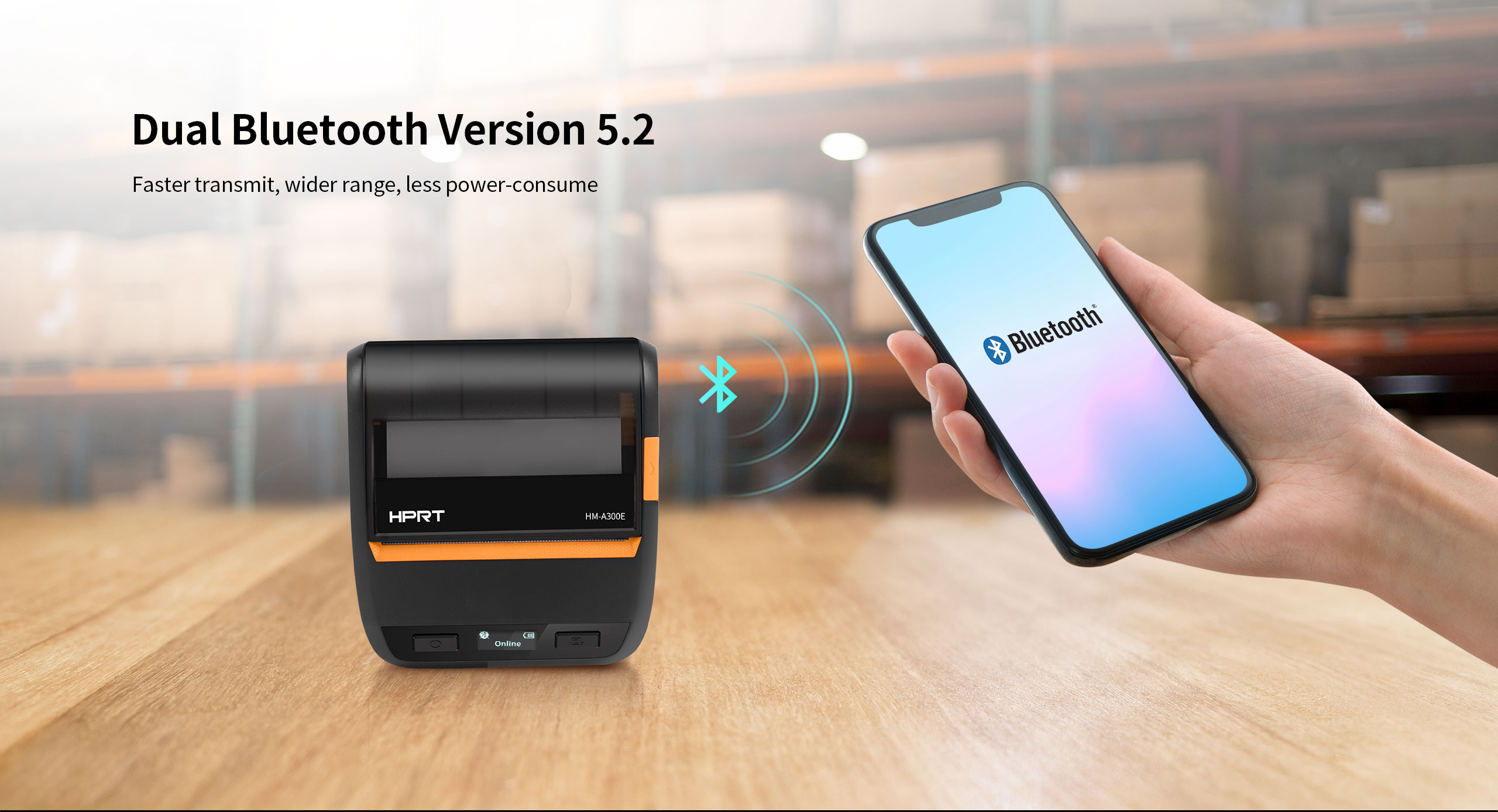

• Dual Bluetooth version 5.2

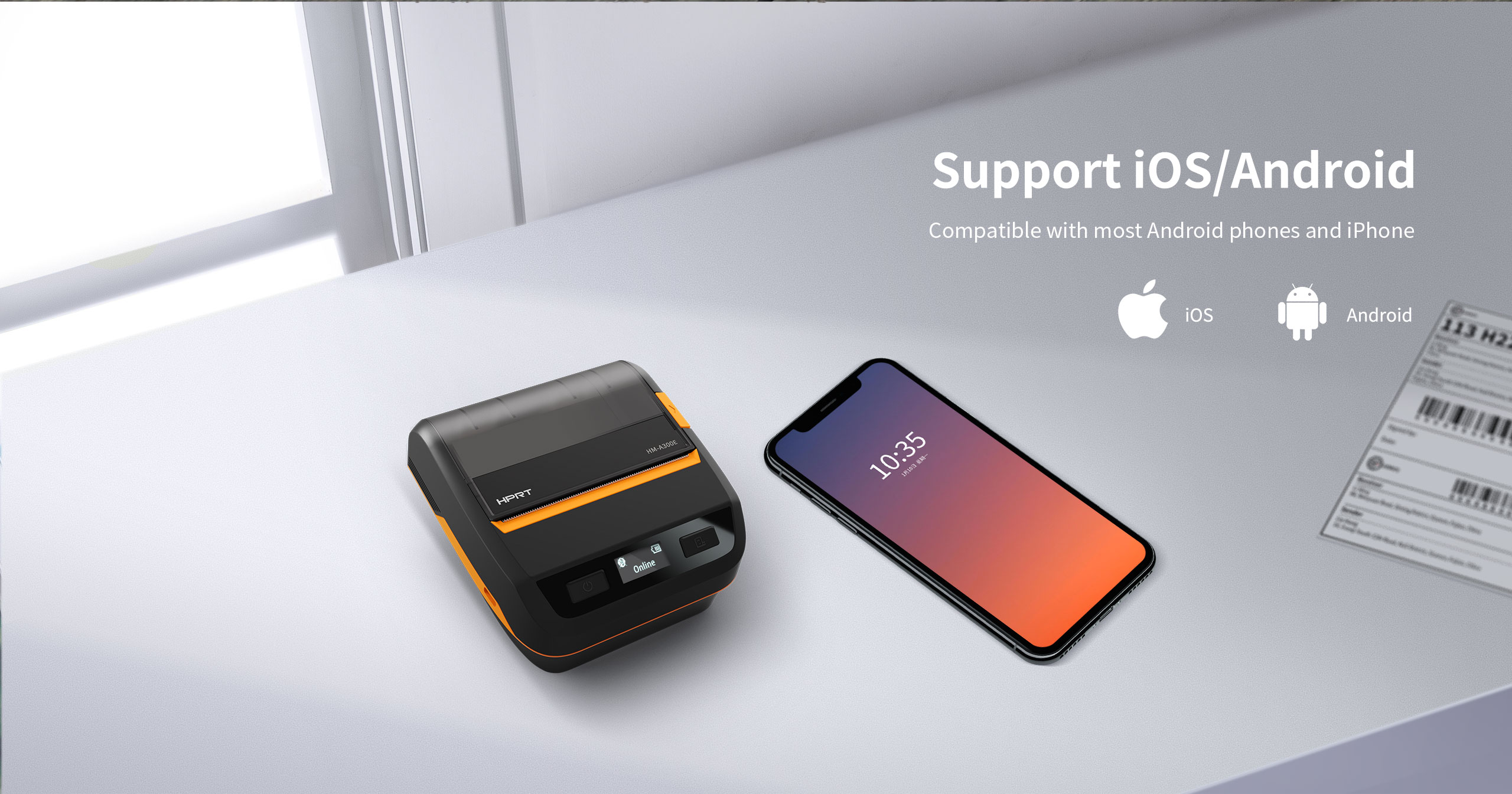

• Support both iOS/Android
