Specifications

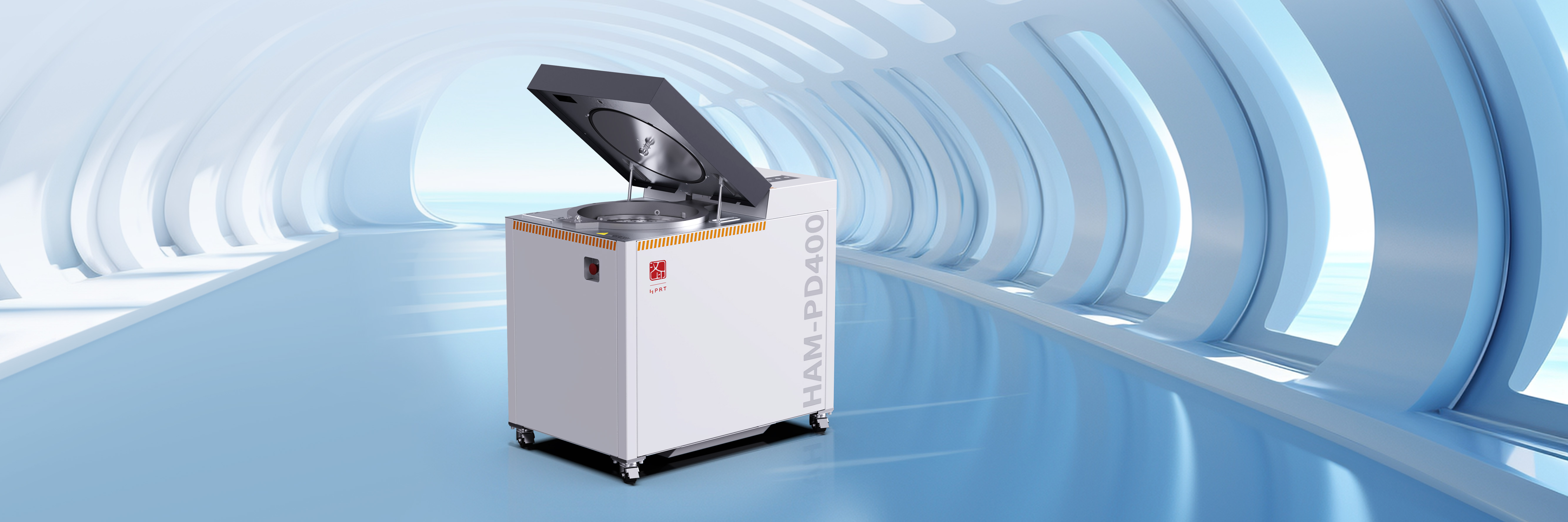

| Model | HAM-PD400 |
| Technology | Liquid Immersion Dyeing |
| Total Equipment Footprint | 2000×1210×2000mm（L×W×H） |
| Single Processing Capacity | 1 unit of HPRT SJF-P380 |
| or 1 unit of HP Jet Fusion 4200/5200, | |
| or 1 unit of EOS P396, | |
| or 1.5 units of Stratasys H350 | |
| Complete construction space | |
| Effective Processing Volume | Φ400×390 mm |
| Single Processing Time | 10~20 min |
| Device Weight | 500 KG |
| Operating Temperature | Max. 115℃ |
| Air Compressing Requirements | 7bar |
| Air Consumption | Max. 1.5 m³ (single) |
| Dye Box Size | S，M，L，XL |
| Supported Printing Technology | SJF，SLS，SAF，MJF，HSS |
| Supported Material | Nylon |
| Supply Voltage | AC 380 V |
| Power Wastage | 10 KW |
Features
• Deep Dyeing Technology: Provides a variety of Pantone color options and uses deep dyeing technology to make the parts more dyed, the surface more uniform, and the color fastness higher.
• All-in-one Operating System: The fully-automatic dyeing and cleaning integrated operation system enables a safe and hygienic working environment, flexible use of colors and quick color change.
• Intelligent Recognition of Color Usage: Dyeing cartridges use chip encryption technology to match customer-selected colors and part materials and sizes.
• High Precision of Coloring: Dyeing completed with high precision.
• Support Multi-color Customization: Supports customization, such as light sources of different wavelengths, consumables, printing formats, etc. can be assisted in selecting.
