Specs
| Model Name | FC107 | FC128 |
| Structure | All-metal structure, Intermittent/Continuous & Left/Right hand integrated | |
| Print Mode | Thrmal transfer | |
| Max. Print Width | 107/128mm(300dpi) | |
| Print Area | 107/128mm*75 mm(Intermittent)107/128mm*150 mm(Continuous) | |
| Resolution | 300 dpi(12 dots/mm) | |

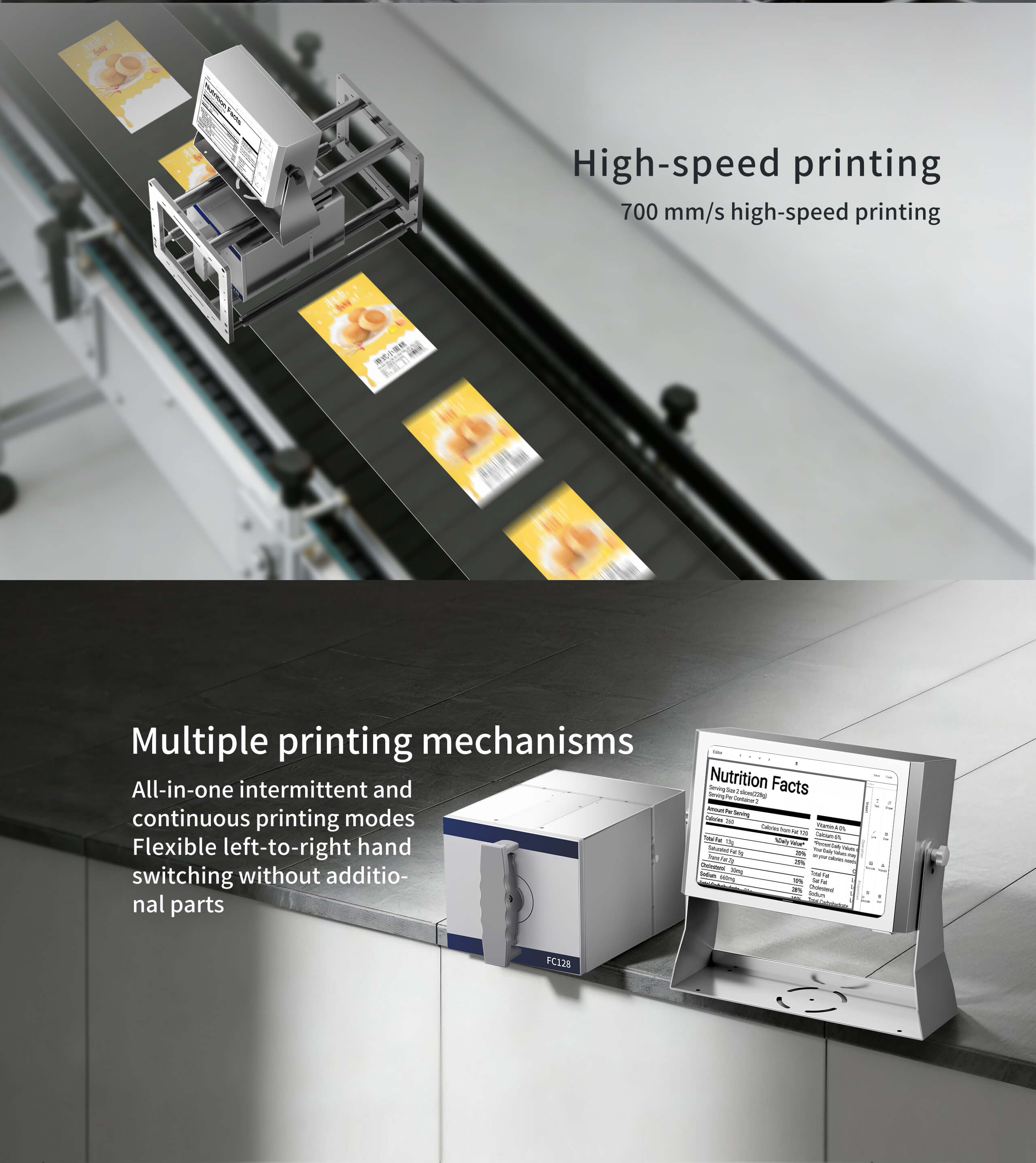

| Print Speed | 10mm/s(Intermittent)/50mm/s(Continuous)-700 mm/s | |
| Processor | 32-bit RSlC Processor | |
| DRAM | Minimum 16 MB | |
| RTC | STD, battery discharge life of at least 3 years | |
| Sensor | Ribbon tension detection; Printhead position detection; Cover open detection; Printhead over-temperature detection;Ribbon breakage detection | |
| Flexible Packaging Detection | Electromagnetic induction or Encoder | |
| Material Type | Various films and composite films such as PVDC, PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, CPP, PE, VMPET, VMCPP, etc. | |
| Ribbon Type | Wax-Resin / Resin | |
| Ribbon Capacity | Maximum length of 900m (Max OD 90mm) on 1” core | |
| Ribbon Width | 55mm to 109mm (FC107), 130mm (FC128) | |
| Ribbon Save | multiple ribbon-saving modes including Interlaced, Radial, Multi-print signal, Digital ribbon save, and Ribbon pullback; the minimum ribbon gap between two printed lines is no more than 0.5 mm. | |
| Air Supply | Maximum 6 bar / 90 psi | |
| Air Consumption | 0.4 ml/print at 2.5 bar | |
| USB Interface | STD 1 port, Type B connector, USB Device 2.0 | |
| USB Host | STD 1 USB Host 2.0 for USB disk | |
| Serial Port | STD 1 port, Female D-SUB 9-pin connector; Default 9600, 8/N/1; Variable baud rate and format | |
| Ethernet Interface | STD 1 port, RJ-45 connector, IEEE 802.3 10/100BASE-T | |
| Hardware Interface | Inputs: "Print Start" and 1 configurable input | |
| Power Supply | Internal switching power supply module, I/P: AC 90 V-264 V, 47/63 Hz; 150 VA | |
| Software | Template Editor | |
| Certification | CE | |
| Environmental Conditions | Operation: 0 to 30°C @ 10% to 90% RH, non-condensing; Storage: -40 to 60°C @ 10% to 90% RH, non-condensing | |
| Dimensions | Controller: H < 210mm, W < 304mm, D < 130mm; Printer: H < 180mm, W < 209mm, D < 197mm | |
| Weight | Printer: 10.2 kg; Controller: 4.8 kg | |
| Warranty | Printing Unit: 3 years | |
| Controller: 3 years Thermal | ||
| Printhead: 6 months or 50 km | ||
| Platen Roller: 5 years | ||
Features

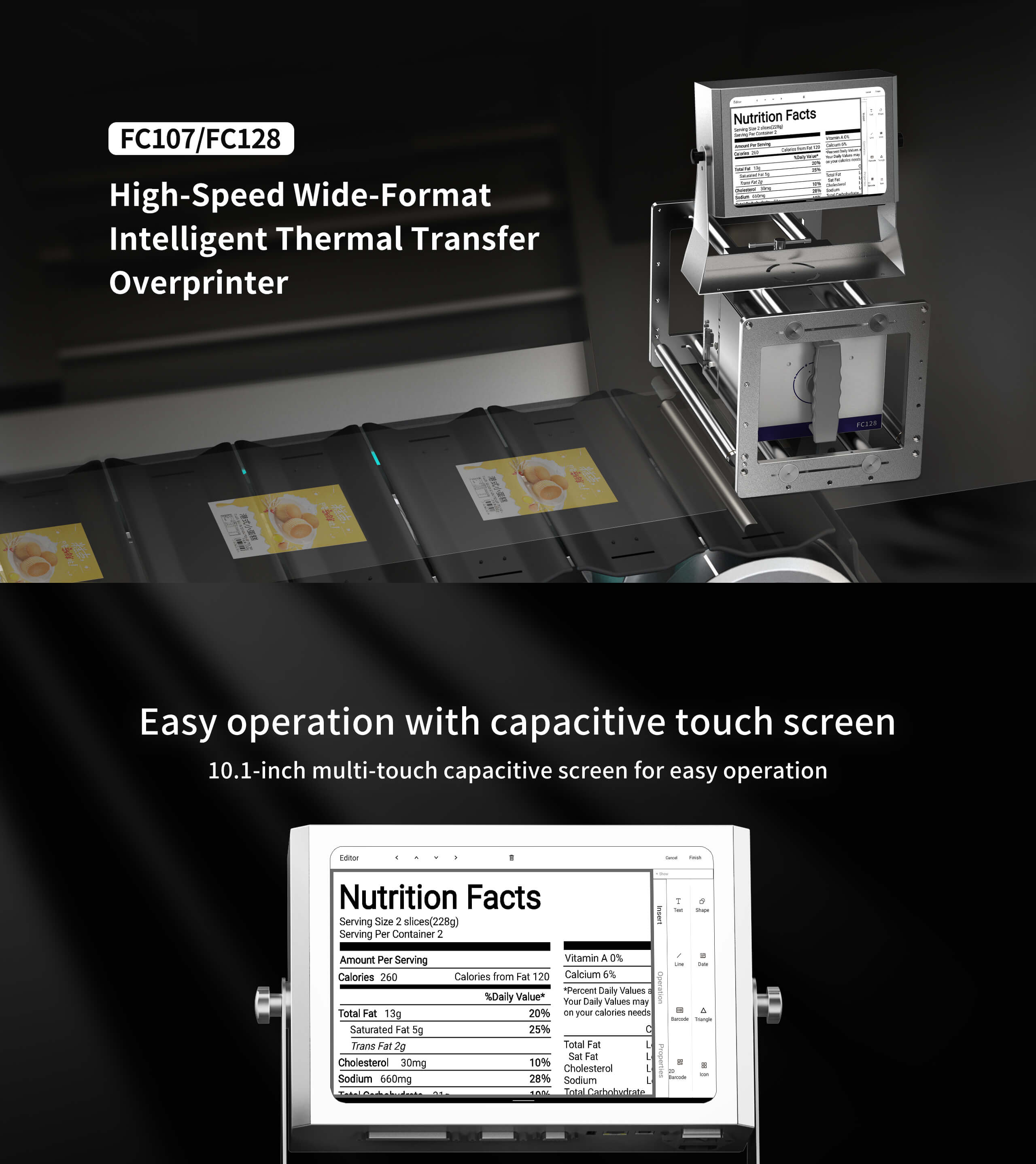

• 10.1-inch multi-touch capacitive screen for easy operation
• Built-in power supply module
• Printer main frame made of metal material, robust and durable

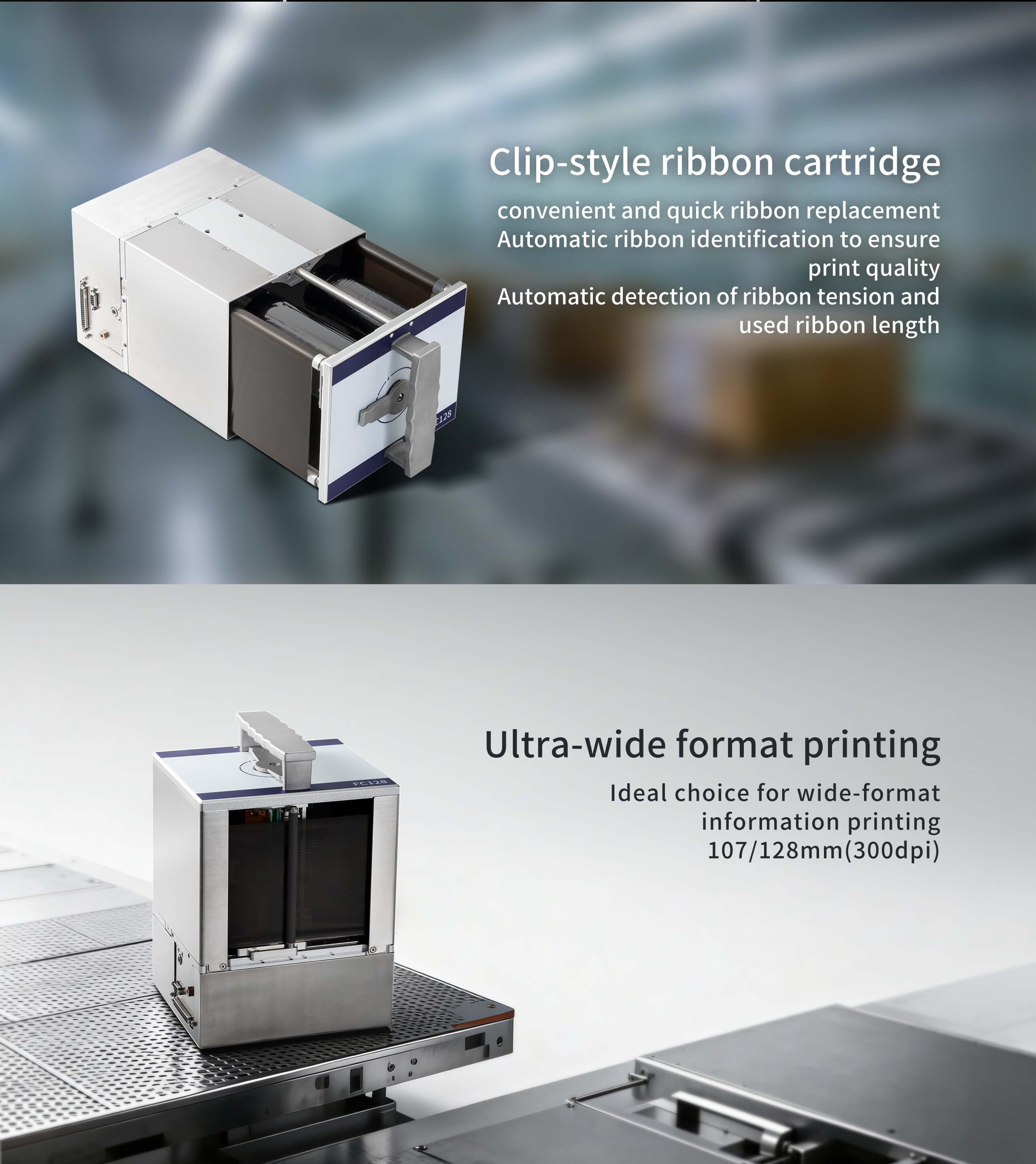

• Clip-style ribbon cartridge for convenient and quick ribbon replacement
• Automatic ribbon identification to ensure print quality
• Automatic detection of ribbon tension and used ribbon length
• Multiple print trigger mechanisms
• All-in-one intermittent and continuous printing modes
• Flexible left-to-right hand switching without additional parts

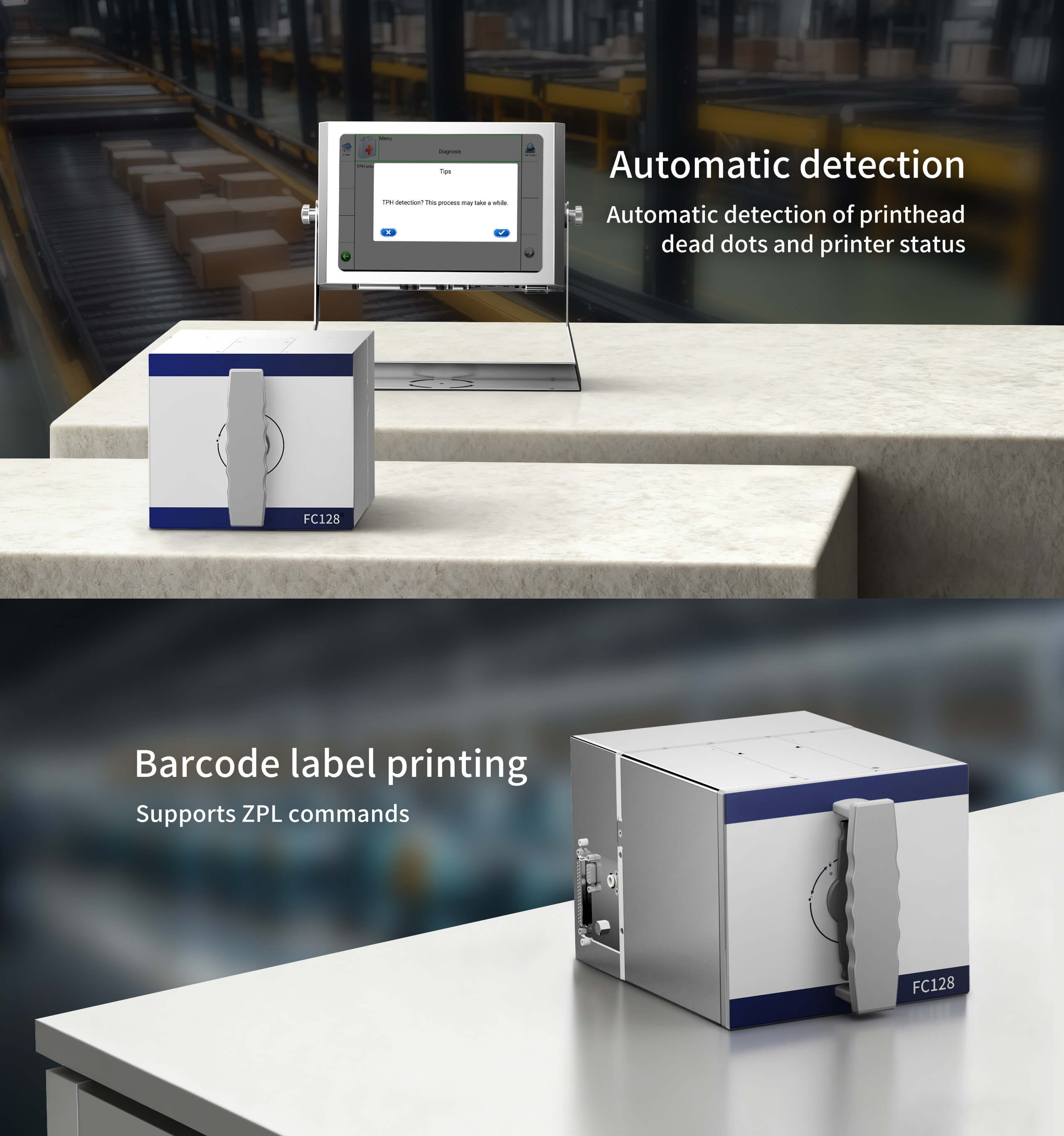

• Automatic detection of printhead dead dots and printer status
• Supports ZPL commands
• Capable of printing date codes, batch numbers, 1D and 2D barcodes, LOGOs.
