Specifications

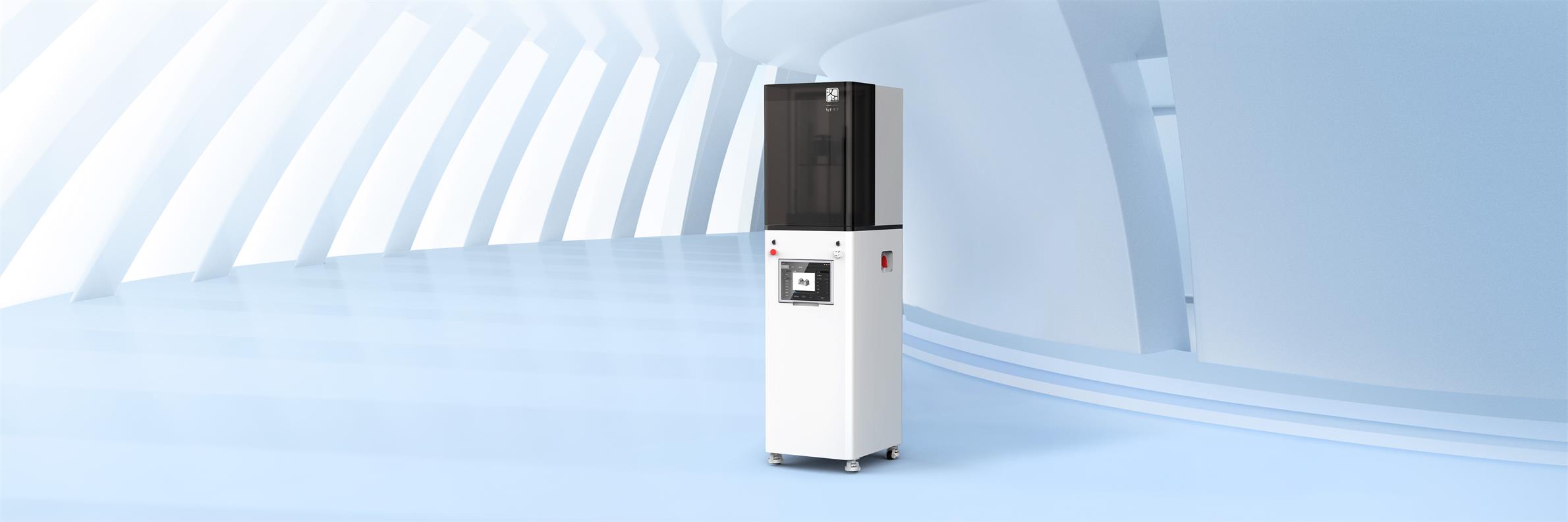

| Model | DLP-D192 |
| Molding Principle | DLP (Digital Light Processing) |
| Category | Industrial Grade |
| Optical Chip | 0.66"/0.47" |
| Light Source Wavelength Range | 385nm/405 nm |
| Printing Layer Thickness | 0.01~0.2 mm |
| XY Printing Accuracy | 50 μm |
| Printing Format | 192×108×300 mm（L×W×H） |
| Printing Speed | 80-120 mm/h |
| Touchscreen | 10.1" (Flippable) |
| Dimension | 650×554×1770 mm（L×W×H） |
| Weight | Approx. 135 kg (Floor Standing) |
| Motherboard | Embedded Industrial Motherboard |
| Operating System | Windows 10 |
| Power Supply Method | AC 220 V |
| Heating System | Automatic Heating to 40°C (Optional) |
| Supported Materials | Photosensitive Resin |
| Supported File Formats | STL、OBJ、SLC |
Features
• Self-developed Software: Self-developed Software, high precision molded parts, can be used to make precision prototype parts.
• Fast Printing Speed: Realize one-stop solution from design to final product (design, printing, post-processing).
• Modularization Design: Modularization Design, you can choose the printing room constant temperature module, automatic feeding module, pressure sensor module, etc. according to your needs.
• Support Customization: Support customization, such as different wavelengths of light sources, consumables, printing formats, etc. can be selected
