Features
• Integrated high-precision industrial vision system enables accurate positioning printing on lace, embroidered fabrics, and jacquard fabrics
• Equipped with 16 Kyocera industrial printheads, delivering print speeds of up to 540 m²/h for efficient high-volume production
• Optimized printhead combination and control system maximize printhead performance for stable handling of large-volume orders
• Supports acid, reactive, high-temperature disperse, and water-based pigment inks, with high-precision drive and ink supply systems ensuring clear details and consistent print quality
• High-efficiency belt cleaning, nozzle moisturizing, and cleaning systems simplify maintenance, improve operational stability, and help reduce production costs
Specifications
| Model | DA188SL POS |

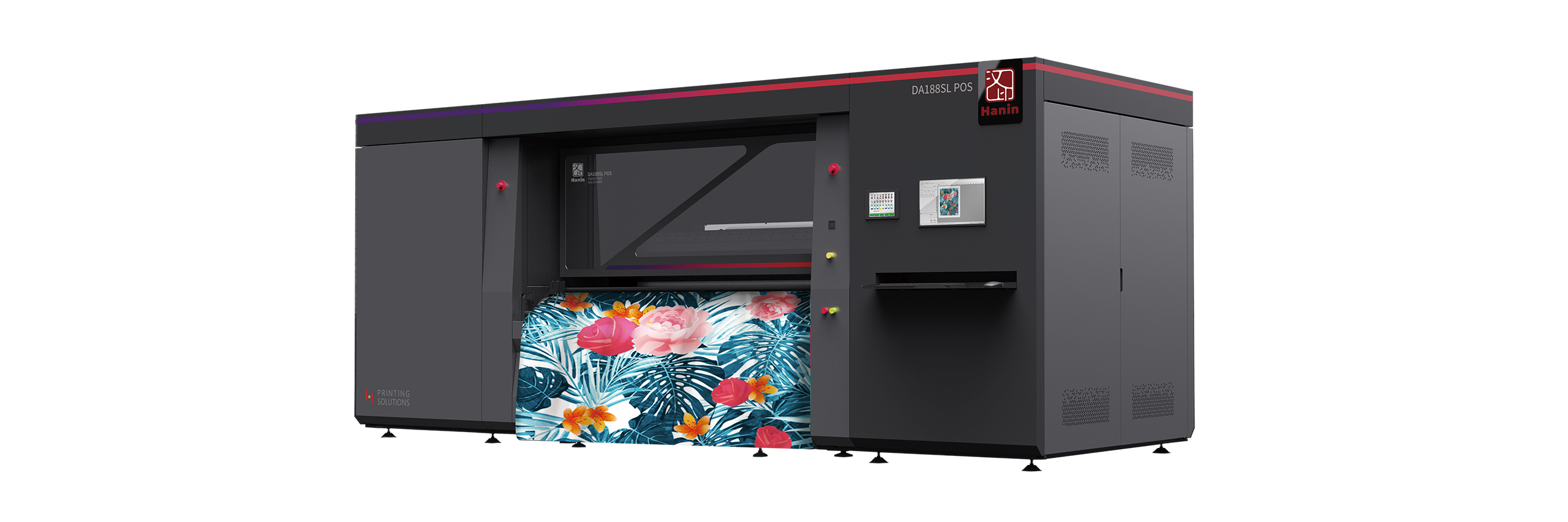

| Name | Hanin Positioning Printing Conveying-belt Digital Direct-to-fabric Printer |
| Printhead | Qty | Rows | Kyocera | 16 pcs | 2 rows |
| Max. effective printing width (mm) | 1850 |
| Max. fabric feed width (mm) | 1950 |
| Ink channel/ink color | 8 colors |
| Max. roll diameter of built-in fabric feed unwinder (mm) | Φ500 |
| Max. weight of built-in fabric feed roll (Kg) | 100 |
| Substrates applicable | Woven and knitted fabrics of cotton, linen, silk, nylon, polyester, blended, eslatic fabric and new developed fibre |
| Printing speed (sqm/hr @1.6m) (Printing mode is open according to customer needs) | High speed mode 1 @508*600dpi|1pass:540 |
| High speed mode 2 @600*600dpi|1pass:480 | |
| General mode 1 @508*1200dpi|2pass:270 | |
| General mode 2 @600*1200dpi|2pass:250 | |
| Quality mode 1 @508*1800dpi|3pass:180 | |
| Quality mode 2 @600*1800dpi|3pass:160 | |
| Positioning printing mode@600*1200dpi|2pass:250 | |
| Ink type (configured based on customer's needs) | Reactive, Acid, Pigment, High temperature disperse. |
| Ink colors (configured based on customer's needs) | C, M, Y, K, O, R, B, G, P, Lk, Lm, Lc, FM, FY |
| Computer system and hardware | Standard workstation computer package |
| RIP and software system | Hanin Task Service, Hanin RIP, NeoStampa |
| Machine size (L*W*H, mm) | 4680*2550*2030（printer only） |
| Machine weight (Kg) | 4000（printer only） |
| Power consumption (kW) | Printer ≤20kW |
| Power supply | AC380V | 3- phase 5-wire | 35A (20kW) | 50Hz/60Hz (for the printer only, not including dryer, external fabric entry unit, etc.) |
| Compressed air supply | 0.6MPa|1m³/hr (dry, no oil or water) |
| Water supply | 0.4MPa|1000L/hr |
| Operating temperature | 20~30℃ |
| Operating humidity | 45%-75% (no condensing) |
| Drying room heating method (optional) | Drying room for digital printing heated by electricity, steam or natural gas for option |
| Fabric feeding option | Optional: A-frame feeder + external fabric feeder or feeding by fabric trolley |
