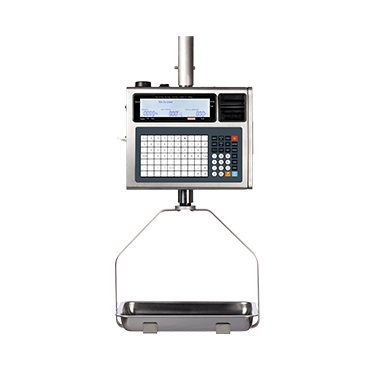

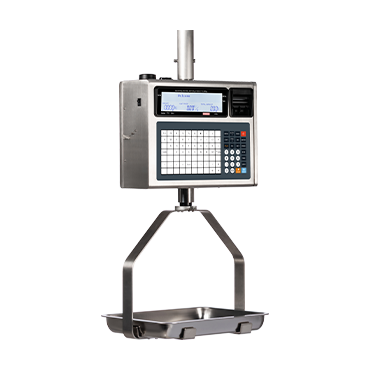

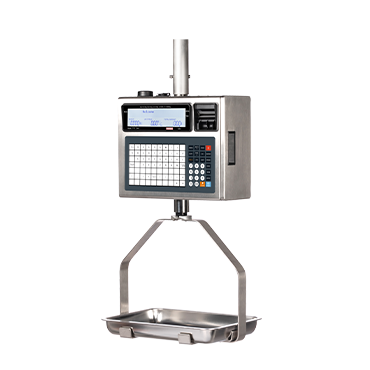

C-H1 Hanging Label Printing Scale

Hanging Barcode Label Scale C H1 Series_01 C-H1 Hanging Barcode Label Scale C H1 Series_02 C-H1 Hanging Barcode Label Scale C H1 Series_03 C-H1 Hanging Barcode Label Scale C H1 Series_04 C-H1 Hanging Barcode Label Scale C H1 Series_05 C-H1

Specs


Maximum CapacityMax=6/15 kg
Minimum CapacityMin=40 g
Number of Divisione=d=2/5 g
Print Resolution203 dpi
Print Length20 mm~105 mm
Print Width56 mm
Print Speed125 mm/s
Media TypeThemal label paper, thermal receipt paper
Medium Outer DiameterMax. 90 mm
Label Paper Size30 mm×30 mm ~ 60 mm×120 mm
Label Height20 mm ~ 120 mm
Label Gap Height1.5 mm ~ 4 mm
Standard SensorOut-of-paper sensor, gap sensor, black mark sensor, paper presentation sensor, cover opening sensor
Standard Communication lnterfaceEthernet, Wi-Fi
Appearance and MaterialStainless steel housing

Features

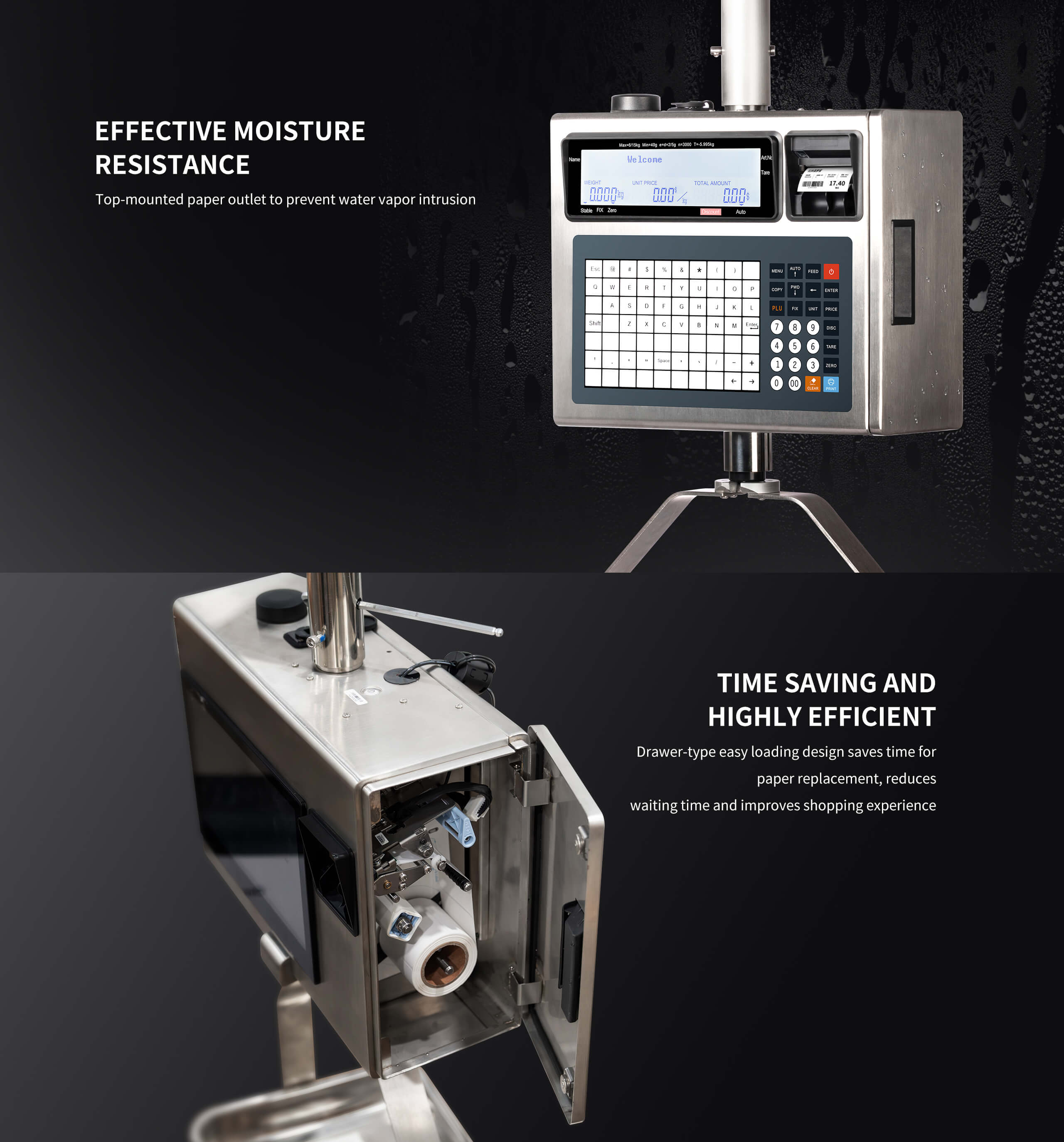

● Top paper outlet provides effective moisture resistance against vapor intrusion.

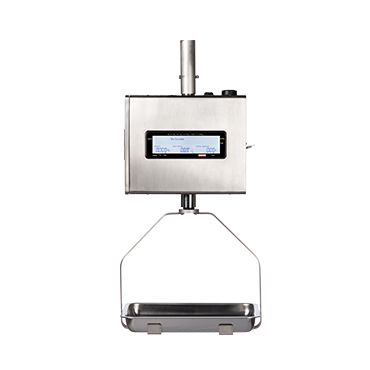

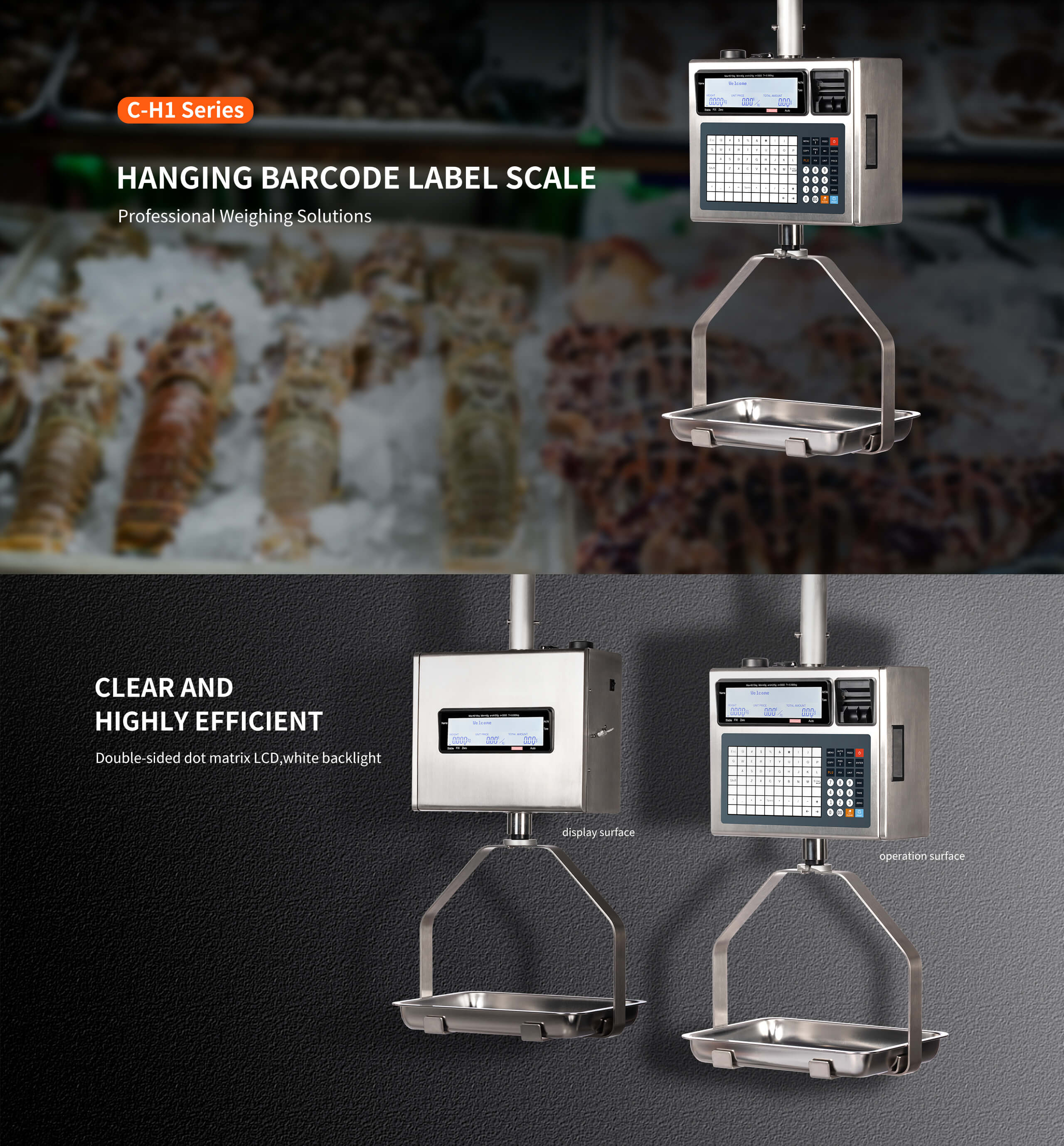

● Double-sided dot matrix LCD with white backlight ensures clear, efficient display.

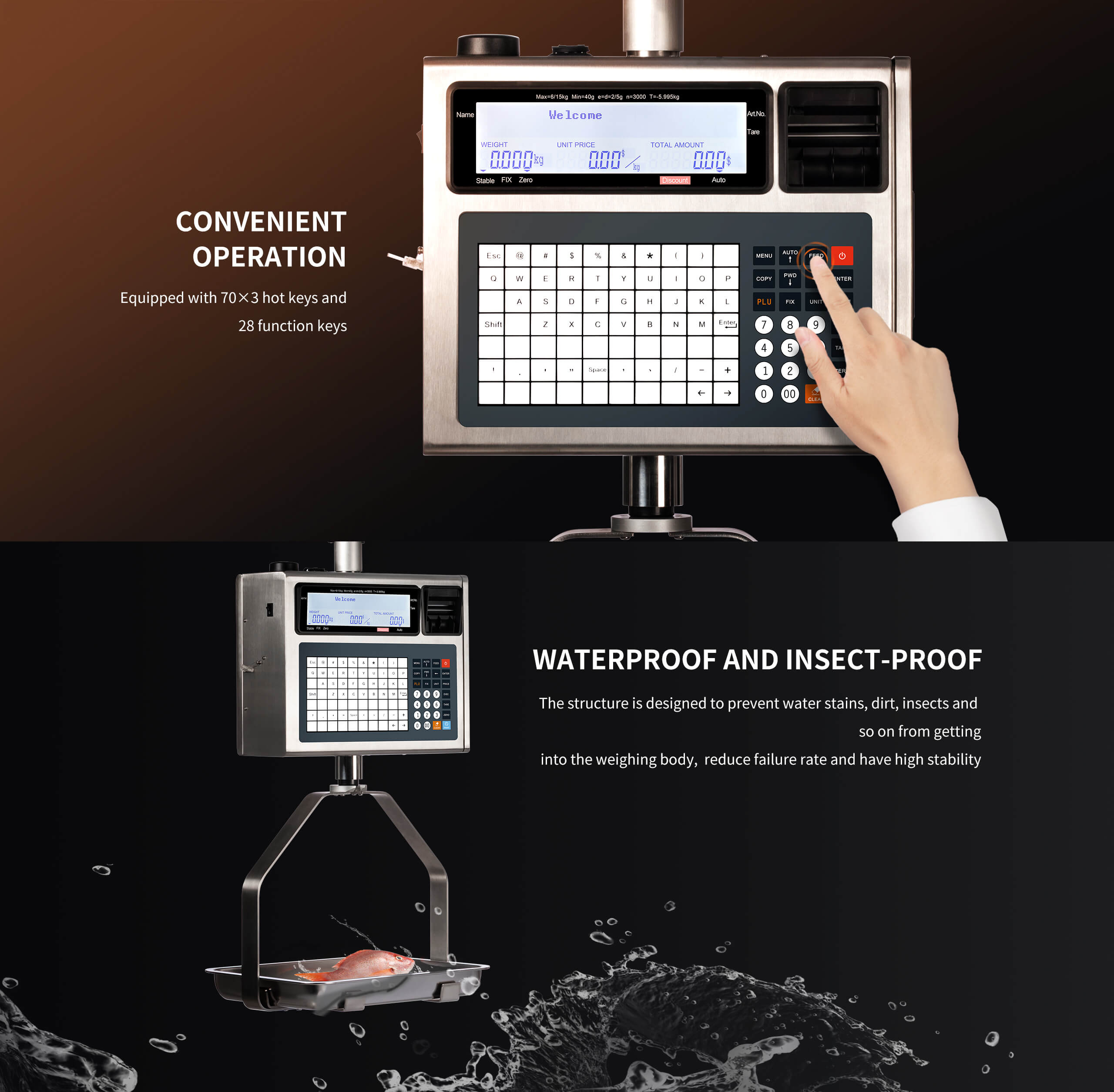

● 210 hot keys and 28 function keys enable easy and convenient operation.

● Waterproof and insect-proof structure blocks contaminants for low failure rate and high stability.

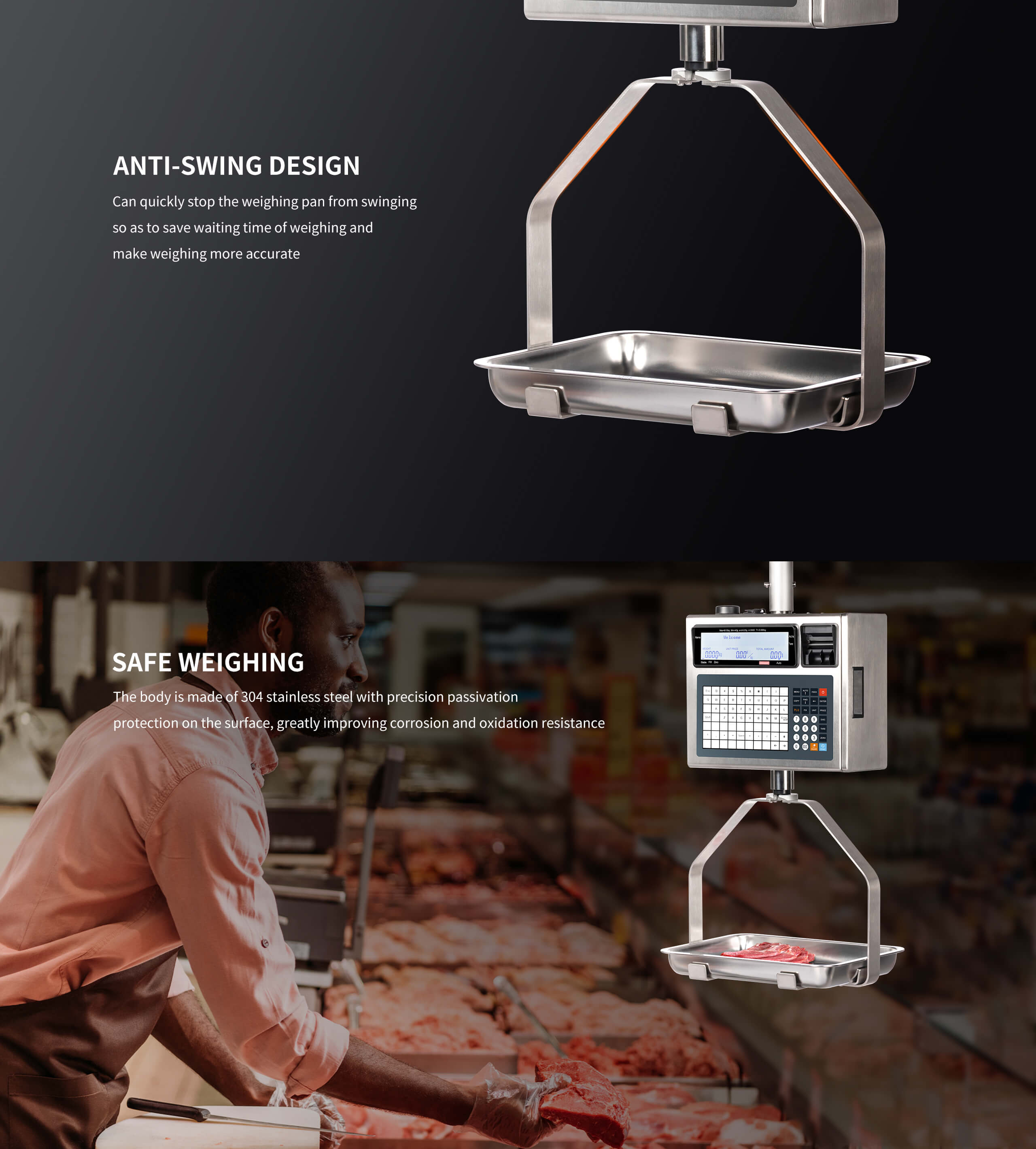

● Anti-swing design quickly stabilizes the pan for faster, more accurate weighing.

● Drawer-type paper slot speeds up roll replacement to save time and improve shopping experience.

● 304 stainless steel body with passivation treatment offers great anti-corrosion and anti-oxidation performance.

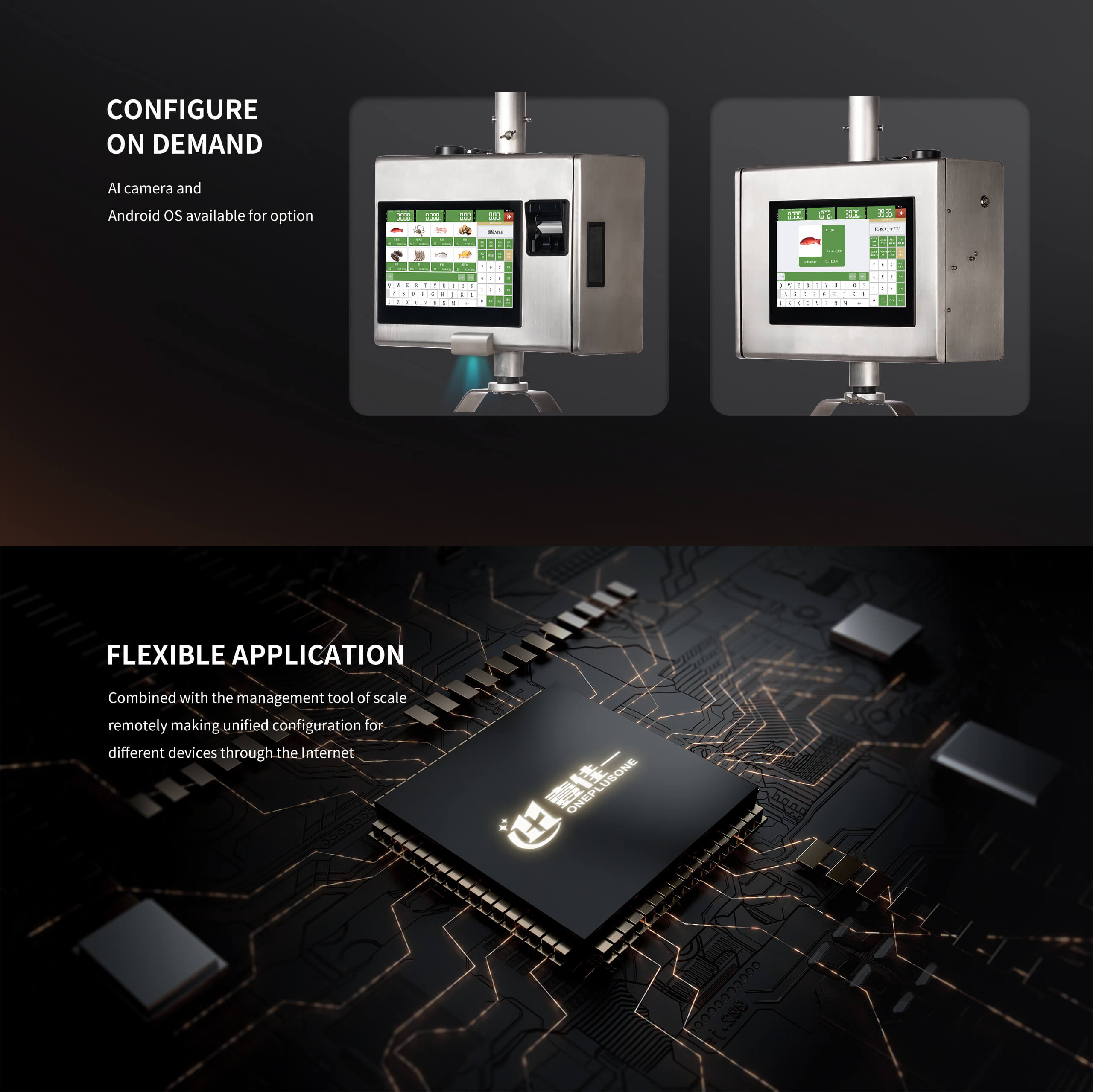

● Customizable with optional AI camera and Android system as required.
